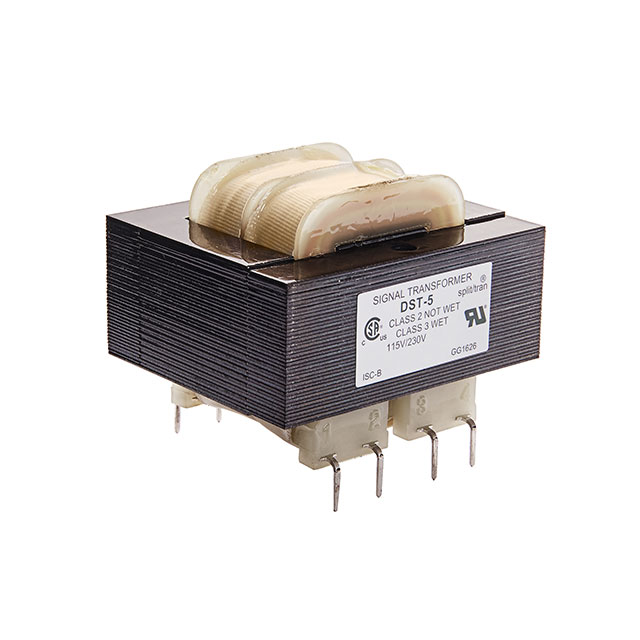

DST-5-24

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Search across all available documentation for this part.

Active

Signal Transformer

POWER TRANSFORMERS 50\60 HZ, LAMINATED TRANSFORMER

Technical Specifications

Parameters and characteristics commom to parts in this series

Power Transformers 50\60 Hz, Laminated Transformer

Part	Center Tap	Weight	Weight	Voltage - Secondary (Full Load)	Secondary Winding(s)	Termination Style	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Current - Output (Max)	Power - Max [Max]	Voltage - Isolation	Primary Winding(s)	Type	Height - Seated (Max) [Max] [z]	Voltage - Primary	Current - Output (Max) [custom]	Current - Output (Max) [custom]
Signal Transformer DST-5-36		0.7 lb	317.51 g	18 V, 36 V	Dual	PC Pin	47.8 mm	39.6 mm	Through Hole	350 mA, 700 mA	12 VA	2500 Vrms	Dual	Laminated Core	36.9 mm	115 V, 230 V
Signal Transformer DST-5-24		0.7 lb	317.51 g	12 V, 24 V	Dual	PC Pin	47.8 mm	39.6 mm	Through Hole		12 VA	2500 Vrms	Dual	Laminated Core	36.9 mm	115 V, 230 V	500 mA	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Transformers 50\60 Hz, Laminated Transformer
