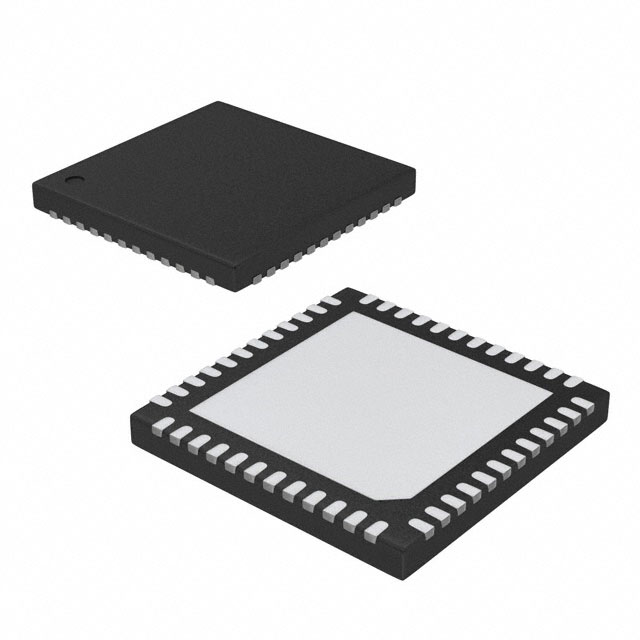

C8051F970-A-GMR
Silicon Labs
IC MCU 8BIT 32KB FLASH 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
C8051F970-A-GMR
Silicon Labs
IC MCU 8BIT 32KB FLASH 48QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C8051F970-A-GMR |
|---|---|
| Connectivity | UART/USART, I2C Slave, I2C/SMBus, SPI |
| Core Processor | CIP-51™ |
| Core Size | 8-Bit |
| Data Converters [custom] | 43 |
| Data Converters [custom] | 10 b |
| Mounting Type | Surface Mount |
| Number of I/O | 43 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Oscillator Type | Internal |
| Package / Case | 48-WFQFN Exposed Pad |
| Peripherals | CapSense, DMA, POR, PWM, WDT |
| Program Memory Size | 32 KB |
| Program Memory Type | FLASH |
| RAM Size | 8 K |
| Speed | 25 MHz |
| Supplier Device Package | 48-QFN (6x6) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2500 | $ 3.12 | |
Description
General part information
C8051F970 Series
CIP-51™ C8051F9xx Microcontroller IC 8-Bit 25MHz 32KB (32K x 8) FLASH 48-QFN (6x6)
Documents
Technical documentation and resources
No documents available
