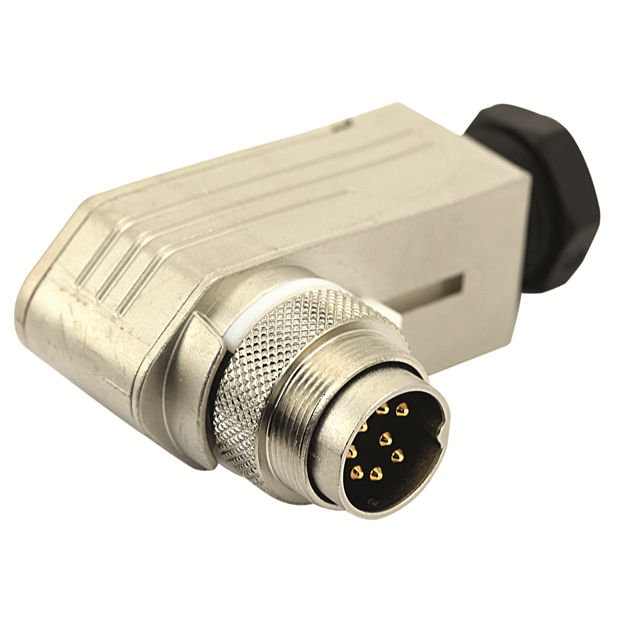

Specification	C091 11K012 001 2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Fastening Type	Threaded
Features	Coupling Nut, Cable Clamp, Backshell
Housing Color	Silver
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-12
Shielding	Shielded
Type	For Male Pins

C091 11K012 Series

Part	Material Flammability Rating	Shell Material	Housing Color	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Features	Number of Positions	Mounting Type	Shell Size - Insert	Connector Type	Contact Shape	Contact Type	Type	Contact Size	Note	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Insert Material	Shielding	Shell Finish
McGill Microwave Systems C091 11K012 001 2	UL94 V-0	Zinc Die Cast	Silver	Keyed	Dust Tight Water Resistant Waterproof	IP65 IP67 IP69K	Backshell Cable Clamp Coupling Nut	12	Free Hanging (In-Line) Right Angle	M16-12	Plug Housing	Circular	Crimp	For Male Pins	1 mm	Contacts Not Included	Threaded	100 °C	-40 °C	Thermoplastic	Shielded	Nickel
