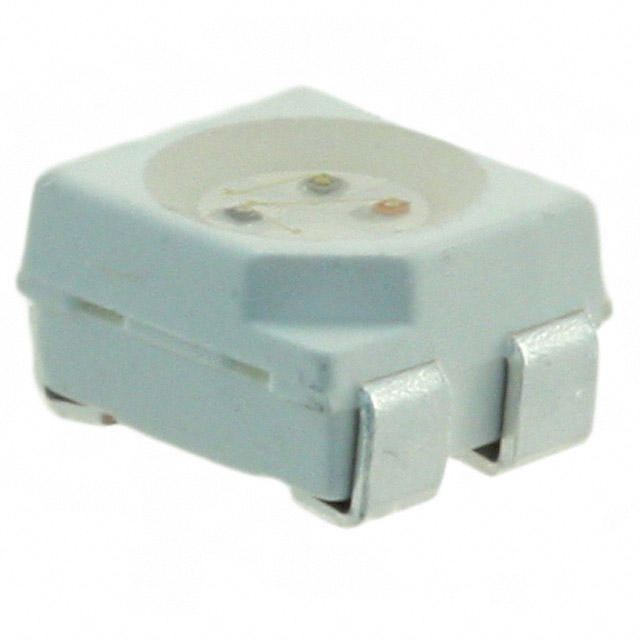

Specification	SMTL4-RGB

Color	Blue (RGB), Green, Red
Configuration	Common Anode
Current - Test (Blue)	20 mA
Current - Test (Green)	20 mA
Current - Test (Red)	20 mA
Current - Test Colors	Red, Blue, Green
Height (Max)	2.05 mm
Lens Color	Colorless
Lens Diameter	2.4 mm
Lens Style	Round, Flat Top
Lens Transparency	Clear
Millicandela Rating (Blue)	11.5 mcd, 50 mcd
Millicandela Rating (Green)	22.5 mcd, 40 mcd
Millicandela Rating (Red)	28.5 mcd, 36 mcd
Millicandela Rating Colors	Green, Red, Blue
Mounting Type	Surface Mount
Package / Case	4-PLCC
Package Name	4-PLCC
Size / Dimension Length	3.2 mm
Size / Dimension Width	2.8 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) (Blue)	4.3 V, 3.3 V
Voltage - Forward (Vf) (Typ) (Green)	2.3 V, 1.9 V
Voltage - Forward (Vf) (Typ) (Red)	1.9 V, 1.85 V
Voltage - Forward (Vf) (Typ) Color	Blue, Green, Red
Wavelength - Dominant (Blue)	466 nm
Wavelength - Dominant (Green)	570 nm
Wavelength - Dominant (Red)	640 nm
Wavelength - Dominant Color	Green, Red, Blue

SMTL4 Series

Part	Voltage - Forward (Vf) (Typ) (Value 1)	Voltage - Forward (Vf) (Typ) (Value 2)	Millicandela Rating Colors	Millicandela Rating (Red)	Millicandela Rating (Yellow)	Lens Style	Height (Max)	Configuration	Lens Diameter	Viewing Angle	Mounting Type	Package / Case	Wavelength - Dominant Color	Wavelength - Dominant (Yellow)	Wavelength - Dominant (Red)	Lens Color	Size / Dimension Width	Size / Dimension Length	Current - Test (Red)	Current - Test Colors	Current - Test	Lens Transparency	Package Name	Color	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Red)	Voltage - Forward (Vf) (Typ) (Blue)	Wavelength - Dominant (Blue)	Wavelength - Dominant (Green)	Millicandela Rating (Green)	Millicandela Rating (Blue)	Current - Test (Green)	Current - Test (Blue)	Voltage - Forward (Vf) (Typ) ({color})	Voltage - Forward (Vf) (Typ) (Value 3)	Wavelength - Dominant	Wavelength - Dominant (Secondary)	Wavelength - Dominant (Primary)
Bivar Inc. SMTL4-SBC-RY	1.9 V	1.9 V	Red Yellow	180 mcd	180 mcd	Flat Top Round	1.95 mm 2.05 mm	Independent	2.4 mm	120 °	Surface Mount	4-PLCC	Red Yellow	591 nm	631 nm	Colorless	2.8 mm	3.2 mm	20 mA	Red Yellow	20 mA	Clear	4-PLCC	Red Yellow
Bivar Inc. SMTL4-RGB			Blue Green Red	28.5 mcd 36 mcd		Flat Top Round	2.05 mm	Common Anode	2.4 mm	120 °	Surface Mount	4-PLCC	Blue Green Red		640 nm	Colorless	2.8 mm	3.2 mm	20 mA	Blue Green Red		Clear	4-PLCC	Blue (RGB) Green Red	Blue Green Red	1.9 V 2.3 V	1.85 V 1.9 V	3.3 V 4.3 V	466 nm	570 nm	22.5 mcd 40 mcd	11.5 mcd 50 mcd	20 mA	20 mA
Bivar Inc. SMTL4-SRYB	3.2 V	1.9 V	Blue Red Yellow	180 mcd	180 mcd	Flat Top Round	2.05 mm	Common Anode	2.4 mm	120 °	Surface Mount	4-PLCC	Blue Red Yellow	591 nm	631 nm	Colorless	2.8 mm	3.2 mm	20 mA	Blue Red Yellow		Clear	4-PLCC	Blue Red Yellow	Blue Red Yellow		1.9 V	3.2 V	470 nm			285 mcd		20 mA	1.9 V	1.9 V	470nm Blue 591nm Yellow 631nm Red
Bivar Inc. SMTL4-SBC-RB			Blue Red	180 mcd		Flat Top Round	1.95 mm 2.05 mm	Independent	2.4 mm	120 °	Surface Mount	4-PLCC	Blue Red		631 nm	Colorless	2.8 mm	3.2 mm	20 mA	Blue Red		Clear	4-PLCC	Blue Red	Blue Red		1.9 V 2 V	3 V 3.2 V	470 nm			285 mcd		20 mA
Bivar Inc. SMTL4-BC-RB			Blue Red	36 mcd		Flat Top Round	2.05 mm	Independent	2.4 mm	120 °	Surface Mount	4-PLCC	Blue Red		640 nm	Colorless	2.8 mm	3.2 mm	20 mA	Blue Red		Clear	4-PLCC	Blue Red	Blue Red		1.85 V	3.3 V	466 nm			50 mcd		20 mA
Bivar Inc. SMTL4-SBC-YG			Green Yellow		145 mcd	Flat Top Round	1.95 mm	Independent	2.4 mm	120 °	Surface Mount	4-PLCC	Green Yellow	591 nm		Colorless	2.8 mm	3.2 mm		Green Yellow	20 mA	Clear	4-PLCC	Green Yellow	Green Yellow	1.9 V				574 nm	72 mcd		20 mA				574nm Green 591nm Yellow
Bivar Inc. SMTL4-SRGB			Blue Green Red	180 mcd		Flat Top Round	1.95 mm 2.05 mm	Common Anode	2.4 mm	120 °	Surface Mount	4-PLCC	Blue Green Red		625 nm 631 nm	Colorless	2.8 mm	3.2 mm	20 mA	Blue Green Red		Clear	4-PLCC	Blue (RGB) Green Red	Blue Green Red	3 V 3.3 V	1.9 V	3 V 3.3 V	470 nm	525 nm	1450 mcd	285 mcd	20 mA	20 mA
Bivar Inc. SMTL4-BC			Green Red	36 mcd		Flat Top Round	2.05 mm	Independent	2.4 mm	120 °	Surface Mount	4-PLCC	Green Red		640 nm	Colorless	2.8 mm	3.2 mm	20 mA	Green Red		Clear	4-PLCC	Green Red	Green Red	1.9 V	1.85 V 1.9 V			570 nm	40 mcd		20 mA
Bivar Inc. SMTL4-BC-RY	1.85 V	1.9 V	Red Yellow	36 mcd	16 mcd	Flat Top Round	2.05 mm	Independent	2.4 mm	120 °	Surface Mount	4-PLCC	Red Yellow			Colorless	2.8 mm	3.2 mm	20 mA	Red Yellow	20 mA	Clear	4-PLCC	Red Yellow														585 nm	640 nm
