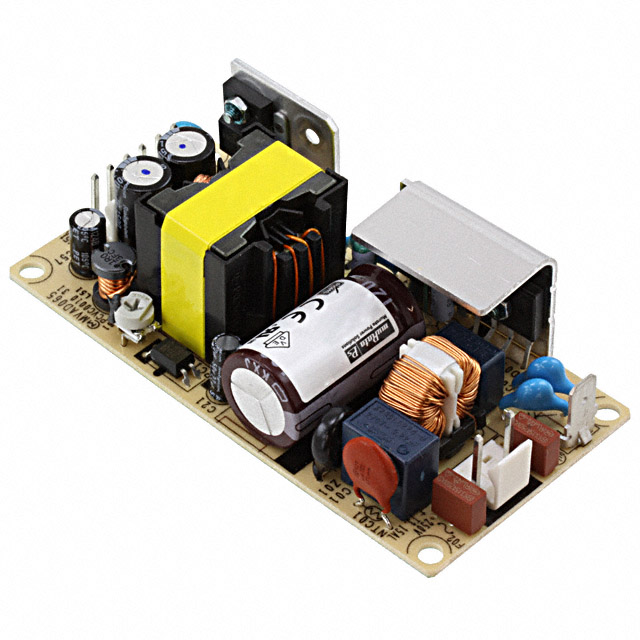

MVAD065-05

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 5V 55W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 5V 55W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MVAD065-05	MVAD065 Series

Applications	ITE (Commercial), Medical	ITE (Commercial), Medical
Approval Agency	CB, CE, cURus, VDE	CB, CE, cURus, VDE
Current - Output 1	11 A	3 - 11 A
Efficiency	84 %	84 - 89 %
Features	Remote Sense, Universal Input, DC Input Capable	Remote Sense, Universal Input, DC Input Capable
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	55 W	55 W
Size / Dimension [x]	4 in	4 in
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	1.3 "	1.3 "
Size / Dimension [z]	33.1 mm	33.1 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	3000 - 4000 V
Voltage - Output 1	5 V	5 - 24 V

AC/DC CONVERTER 18V 60W

Part	Number of Outputs	Type	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Applications	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output 1	Approval Agency	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Power (Watts)
Murata Power Solutions Inc. MVAD065-18	1	Open Frame	18 V	90 VAC	264 VAC	Chassis Mount	ITE (Commercial), Medical	DC Input Capable, Remote Sense, Universal Input	4 in	1.3 "	2 in	33.1 mm	50.8 mm	101.6 mm	3.34 A	CB, CE, cURus, VDE	86 %	-10 °C	70 °C	4000 V
Murata Power Solutions Inc. MVAD065-24	1	Open Frame	24 V	90 VAC	264 VAC	Chassis Mount	ITE (Commercial), Medical	DC Input Capable, Universal Input	4 in	1.3 "	2 in	33.1 mm	50.8 mm	101.6 mm	3 A	CB, CE, cURus, VDE	89 %	-10 °C	70 °C	3000 V
Murata Power Solutions Inc. MVAD065-05	1	Open Frame	5 V	90 VAC	264 VAC	Chassis Mount	ITE (Commercial), Medical	DC Input Capable, Remote Sense, Universal Input	4 in	1.3 "	2 in	33.1 mm	50.8 mm	101.6 mm	11 A	CB, CE, cURus, VDE	84 %	-10 °C	70 °C	4000 V	55 W
Murata Power Solutions Inc. MVAD065-12	1	Open Frame	12 V	90 VAC	264 VAC	Chassis Mount	ITE (Commercial), Medical	DC Input Capable, Universal Input	4 in	1.3 "	2 in	33.1 mm	50.8 mm	101.6 mm	5 A	CB, CE, cURus, VDE	88 %	-10 °C	70 °C	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input
