AT04-08PD Series

Part	Note	Mounting Type	Number of Positions	Insulation Material	Connector Type	Color	Operating Temperature (Max)	Operating Temperature (Min)	Features	Number of Rows	Contact Termination	Contact Type	Fastening Type	Insulation Height	Shrouding	Contact Shape	Contact Finish - Mating	Ingress Protection	Contact Material	Number of Positions Loaded	Termination	Insulation Color	Current Rating	Style	Applications

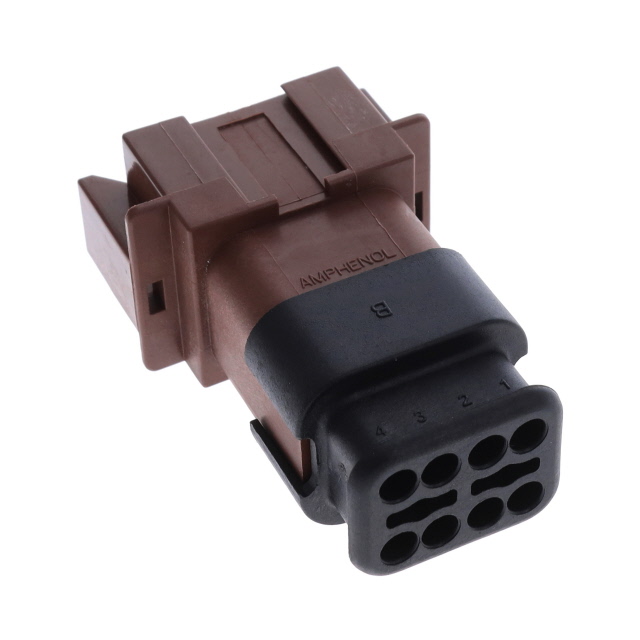

McGill Microwave Systems AT04-08PD-SRBR	Contacts Not Included	Free Hanging (In-Line)	8	Thermoplastic	Receptacle	Brown	125 °C	-55 °C	Cap (Cover) Sealed Strain Relief	2	Crimp	Male Pin	Latch Holder

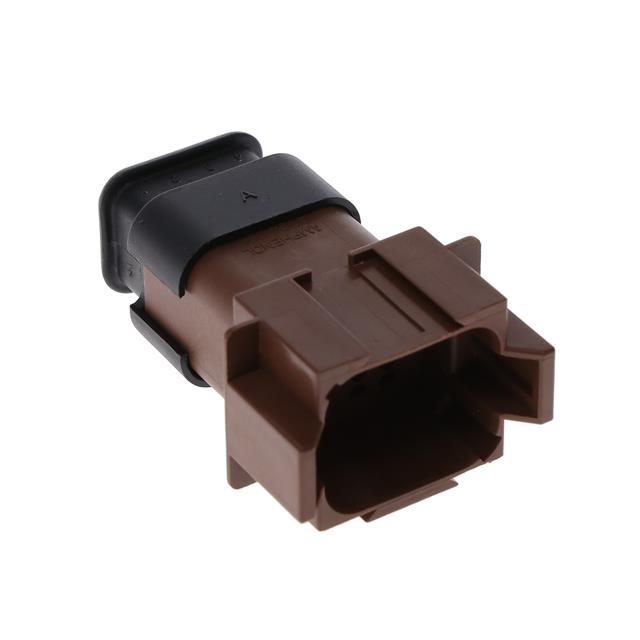

McGill Microwave Systems AT04-08PD-SR2BR	Contacts Not Included	Free Hanging (In-Line)	8	Thermoplastic	Receptacle	Brown	125 °C	-55 °C	Cap (Cover) Sealed Strain Relief	2	Crimp	Male Pin	Latch Holder

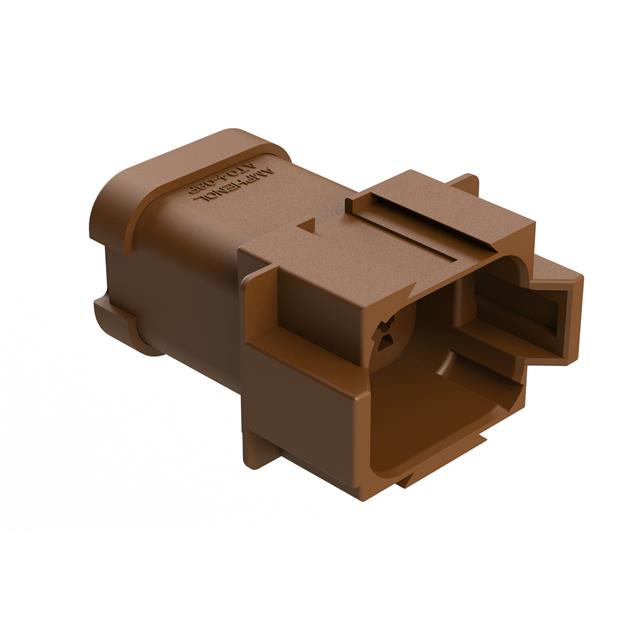

McGill Microwave Systems AT04-08PD-MM01	Contacts Not Included	Free Hanging (In-Line)	8	Thermoplastic	Receptacle	Brown	125 °C	-55 °C	Cap (Cover) Sealed	2	Crimp	Male Pin	Latch Holder
McGill Microwave Systems AT04-08PD-SS01	Contacts Not Included	Free Hanging (In-Line)	8	Thermoplastic	Receptacle	Brown	125 °C	-55 °C	Cap (Cover) Sealed	2	Crimp	Male Pin	Latch Holder

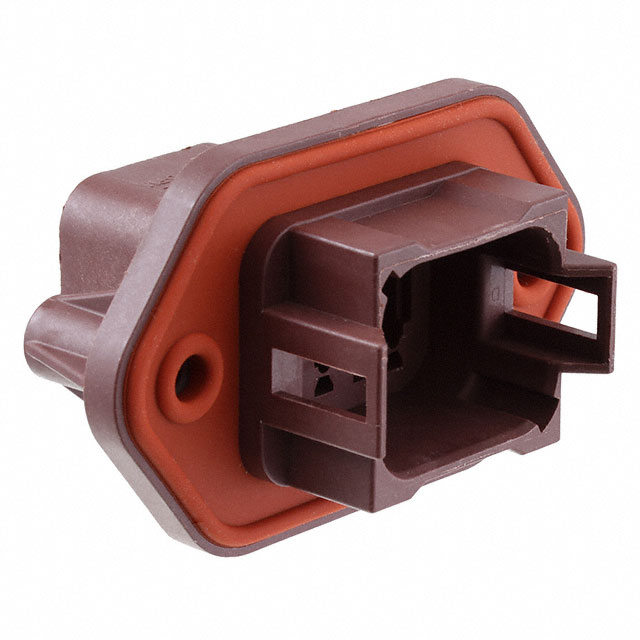

McGill Microwave Systems AT04-08PD-PM12	Contacts Not Included	Panel Mount	8	Thermoplastic	Receptacle	Brown	125 °C	-55 °C	Mounting Flange Sealed	2	Crimp	Male Pin	Latch Holder
McGill Microwave Systems AT04-08PD-BM03		Through Hole	8	Thermoplastic	Receptacle		125 °C	-55 °C	Board Lock	2		Male Pin	Latch Holder	0.835 in	Shrouded - 4 Wall	Circular	Nickel	IP67	Copper Alloy	All	Solder	Brown	13 A	Board Cable/Wire	Automotive General Purpose Industrial
