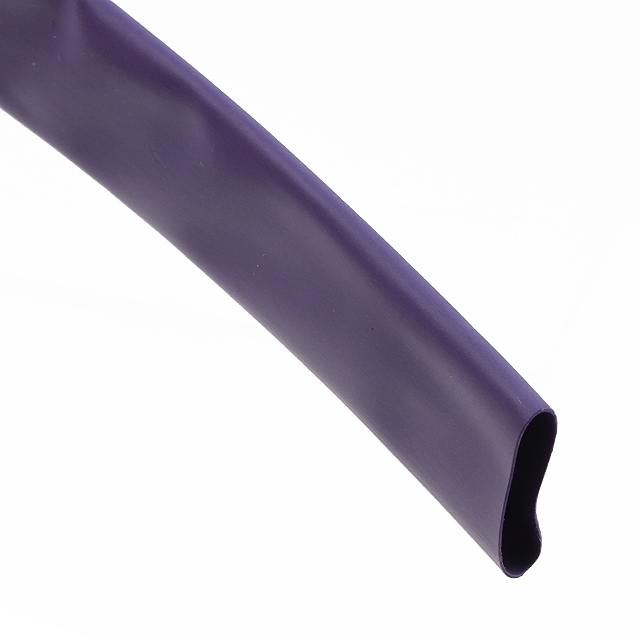

RNF-3000-12/4-7-SP

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.472" VIOLET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RNF-3000-12/4-7-SP

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.472" VIOLET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RNF-3000-12/4-7-SP

Color	Violet
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	0.472 in
Inner Diameter - Supplied [diameter]	11.99 mm
Length	150 m
Length	492.1 ft
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.76 mm
Recovered Wall Thickness	0.03 "
Shelf Life	144 Months
Shrink Temperature	80 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

RAYCHEM RNF-3000 Series

Part	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Recovered Wall Thickness	Recovered Wall Thickness	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Color	Material	Shrink Temperature	Features	Recovered Wall Thickness	Length	Length	Shelf Life	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection 5677832002	0.02 in	0.51 mm	Tubing Flexible	0.06 in	1.52 mm	135 °C	-55 °C	0.018 in	0.46 mm	1	3	35 °C	0 °C	White	Polyolefin (PO) Irradiated	80 °C
TE Connectivity Raychem Cable Protection RNF-3000-12/4-2-SP	0.157 in	3.99 mm	Tubing Flexible	0.472 in	11.99 mm	135 °C	-55 °C		0.76 mm	1	3			Red	Polyolefin (PO)	80 °C	Flame Retardant	0.03 "	150 m	492.1 ft	144 Months
TE Connectivity Raychem Cable Protection RNF-3000-24/8-9-SP	0.315 in	8 mm	Tubing Flexible	0.944 in	23.98 mm	135 °C	-55 °C	0.039 in	0.99 mm	1	3			White	Polyolefin (PO)	80 °C	Flame Retardant		60 m	196.8 ft	144 Months
TE Connectivity Raychem Cable Protection RNF-3000-39/13-2-SP			Tubing Flexible	1.534 in	38.96 mm	135 °C	-55 °C	0.045 in	1.14 mm	1	3			Red	Polyolefin (PO)	80 °C	Flame Retardant		60 m	196.8 ft	144 Months	13 mm	0.512 in
TE Connectivity Raychem Cable Protection RNF-3000-1.5/0.5-2-SP			Tubing Flexible	0.059 in	1.5 mm	135 °C	-55 °C	0.018 in	0.46 mm	1	3			Red	Polyolefin (PO)	80 °C	Flame Retardant				144 Months			1 m	3.28 ft
TE Connectivity Raychem Cable Protection RNF-3000-1.5/0.5-7-SP			Tubing Flexible	0.059 in	1.5 mm	135 °C	-55 °C	0.018 in	0.46 mm	1	3			Violet	Polyolefin (PO)	80 °C	Flame Retardant				144 Months			600 m	1968.5 ft
TE Connectivity Raychem Cable Protection RNF-3000-18/6-7-SP			Tubing Flexible	0.709 in	18.01 mm	135 °C	-55 °C	0.033 in	0.84 mm	1	3			Violet	Polyolefin (PO)	80 °C	Flame Retardant				144 Months	5.99 mm	0.236 in
TE Connectivity Raychem Cable Protection RNF-3000-39/13-7-SP			Tubing Flexible	1.534 in	38.96 mm	135 °C	-55 °C	0.045 in	1.14 mm	1	3			Violet	Polyolefin (PO)	80 °C	Flame Retardant		60 m	196.8 ft	144 Months	13 mm	0.512 in
TE Connectivity Raychem Cable Protection RNF-3000-12/4-7-SP	0.157 in	3.99 mm	Tubing Flexible	0.472 in	11.99 mm	135 °C	-55 °C		0.76 mm	1	3			Violet	Polyolefin (PO)	80 °C	Flame Retardant	0.03 "	150 m	492.1 ft	144 Months			1 m	3.28 ft
TE Connectivity Raychem Cable Protection 5677582005			Tubing Flexible	0.354 in	8.99 mm	135 °C	-55 °C		0.76 mm	1	3	35 °C	0 °C	Black	Polyolefin (PO) Irradiated	80 °C		0.03 "				3 mm	0.118 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3000	$ 3.47

Description

General part information

RAYCHEM RNF-3000 Series

Heat Shrink Tubing, Flexible 0.472" (11.99mm) 3 to 1 Violet 492.1' (150.0m)
