PT04A-10-6P(027)
ActiveAmphenol Industrial Operations

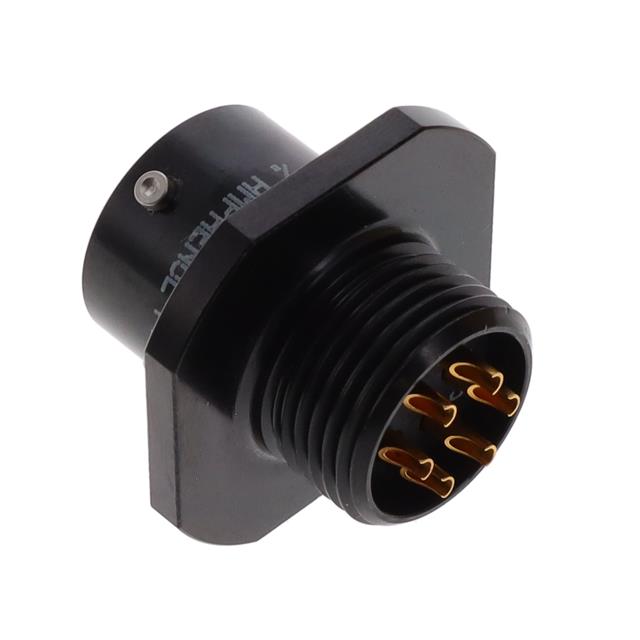

PT 6C 6#20 PIN RECP
Deep-Dive with AI
Search across all available documentation for this part.
PT04A-10-6P(027)
ActiveAmphenol Industrial Operations
PT 6C 6#20 PIN RECP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT04A-10-6P(027) | PT04A Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Military, Mass Transit, Instrumentation, Aerospace, Industrial, Communication Systems |
| Backshell Material, Plating | Black Zinc Cobalt, Aluminum | Black Zinc Cobalt, Aluminum, Olive Drab Cadmium |
| Color | Black | Black, Olive Drab |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 4 - 10 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Black Zinc Cobalt | Black Zinc Cobalt, Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 10-6 | 10-6, 8-4 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 36.17 | |
| 10 | $ 30.75 | |||
| 25 | $ 28.82 | |||
| 50 | $ 27.45 | |||
| 100 | $ 26.14 | |||
| 250 | $ 24.50 | |||
PT04A Series
PT 6C 6#20 PIN RECP
| Part | Applications | Connector Type | Qualification | Fastening Type | Backshell Material, Plating | Insert Material | Shielding | Shell Material | Contact Finish - Mating | Shell Finish | Primary Material | Number of Positions | Orientation | Contact Material | Color | Shell Size - Insert | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT04A-10-6P(027) | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Male Pins, Receptacle | MIL-DTL-26482 Series I | Bayonet Lock | Aluminum, Black Zinc Cobalt | Neoprene | Unshielded | Aluminum | Gold | Black Zinc Cobalt | Metal | 6 | N | Copper Alloy | Black | 10-6 | Free Hanging (In-Line) | -55 °C | 125 °C |
Amphenol Industrial Operations PT04A8-4SW | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Receptacle, Female Sockets | MIL-DTL-26482 Series I | Bayonet Lock | Aluminum, Olive Drab Cadmium | Neoprene | Unshielded | Aluminum | Gold | Olive Drab Chromate over Cadmium | Metal | 4 | W | Copper Alloy | Olive Drab | 8-4 | Free Hanging (In-Line) | -55 °C | 125 °C |
Amphenol Industrial Operations PT04A12-10S-025 | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Receptacle, Female Sockets | MIL-DTL-26482 Series I | Bayonet Lock | Aluminum, Black Zinc Cobalt | Neoprene | Unshielded | Aluminum | Gold | Black Zinc Cobalt | Metal | 10 | N | Copper Alloy | Black | Free Hanging (In-Line) | -55 °C | 125 °C |
Description
General part information
PT04A Series
6 Position Circular Connector Receptacle, Male Pins Solder Cup
