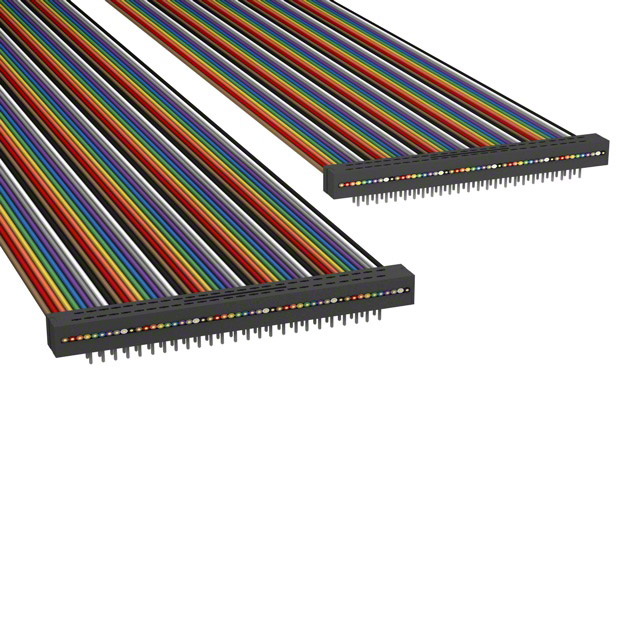

A8MMS-5018M

Active

TE Connectivity Raychem Cable Protection

ADM50S/AE50M/ADM50S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A8MMS-5018M

Active

TE Connectivity Raychem Cable Protection

ADM50S/AE50M/ADM50S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A8MMS-5018M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	DIP to DIP, Reversed
Contact Finish	Tin
Contact Finish Thickness	2.54 µm
Contact Finish Thickness	100 µin
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded
Usage	Board In, Socket (0.1")

A8MMS Series

Part	Usage	Number of Rows	Length [x]	Length [x]	Shielding	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Cable Termination	Number of Positions	Length	Length	Length	Color
TE Connectivity Raychem Cable Protection A8MMS-2018G	Board In Socket (0.1")	2	457.2 mm	1.5 ft	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	20
TE Connectivity Raychem Cable Protection A8MMS-3406M	Board In Socket (0.1")	2			Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	34	152.4 mm	6 "	0.5 '	Multiple Ribbon
TE Connectivity Raychem Cable Protection A8MMS-5018M	Board In Socket (0.1")	2	457.2 mm	1.5 ft	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	50				Multiple Ribbon
TE Connectivity Raychem Cable Protection A8MMS-6418G	Board In Socket (0.1")	2	457.2 mm	1.5 ft	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	64
TE Connectivity Raychem Cable Protection A8MMS-2636G	Board In Socket (0.1")	2	914.4 mm	3 ft	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	26
TE Connectivity Raychem Cable Protection A8MMS-6018M	Board In Socket (0.1")	2	457.2 mm	1.5 ft	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	60				Multiple Ribbon
TE Connectivity Raychem Cable Protection A8MMS-1406M	Board In Socket (0.1")	2			Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	14	152.4 mm	6 "	0.5 '	Multiple Ribbon
TE Connectivity Raychem Cable Protection A8MMS-2006G	Board In Socket (0.1")	2			Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	20	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A8MMS-2036M	Board In Socket (0.1")	2	914.4 mm	3 ft	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	20				Multiple Ribbon
TE Connectivity Raychem Cable Protection A8MMS-1036G	Board In Socket (0.1")	2	914.4 mm	3 ft	Unshielded	0.05 "	1.27 mm	0.1 in	2.54 mm	2.54 µm	100 µin	DIP to DIP Reversed	Tin	IDC	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.29
		10	$ 13.50
		25	$ 12.53
		50	$ 11.84
		100	$ 11.20
		250	$ 10.40
		500	$ 9.83
		1000	$ 9.49

Description

General part information

A8MMS Series

50 Position Cable Assembly Rectangular DIP to DIP, Reversed 1.50' (457.20mm)
