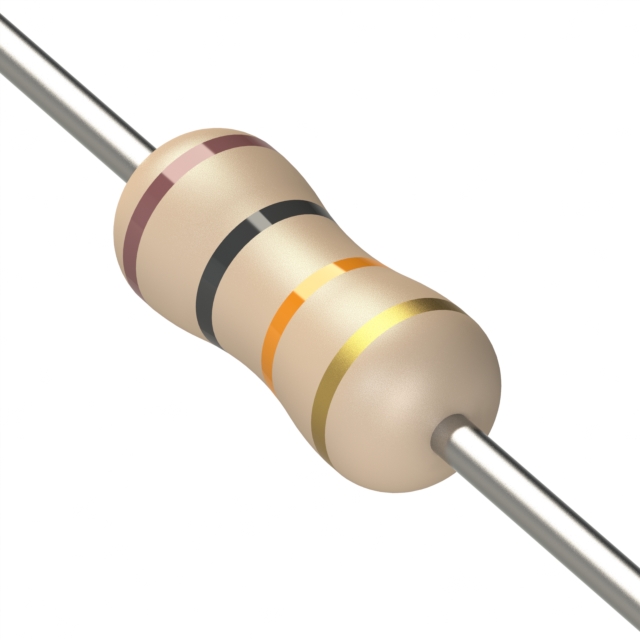

CFS1/2CT52R103J

Active

KOA Speer Electronics, Inc.

RES 10K OHM 5% 1/2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFS1/2CT52R103J

Active

KOA Speer Electronics, Inc.

RES 10K OHM 5% 1/2W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.26
		10	$ 0.21
		25	$ 0.16
		50	$ 0.12
		100	$ 0.08
		250	$ 0.07
		500	$ 0.05
		1000	$ 0.04
	Tape & Reel (TR)	4000	$ 0.04

Description

General part information

CFS1/2 Series

10 kOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CFS1/2CT52R103J	CFS1/2 Series

Composition	Carbon Film	Carbon Film
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	0.5 W	0.5 W
Power (Watts)	0.5 W	0.5 W
Resistance	10000 Ohms	1 - 10000 kOhms
Size / Dimension [diameter]	2.85 mm	2.85 mm
Size / Dimension [diameter]	0.112 in	0.112 in
Size / Dimension [x]	6.3 mm	6.3 mm
Size / Dimension [x]	0.248 in	0.248 in
Supplier Device Package	Axial	Axial
Temperature Coefficient [Max]	350 ppm/°C	-700 - 350 ppm/°C
Temperature Coefficient [Min]	-450 ppm/°C	-1300 - 0 ppm/°C
Tolerance	5 %	2 - 5 %

CFS1/2 Series

RES 75K OHM 5% 1/2W AXIAL

Part	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Supplier Device Package	Tolerance	Power (Watts)	Power (Watts)	Temperature Coefficient [Max]	Temperature Coefficient [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Resistance	Number of Terminations	Package / Case
KOA Speer Electronics, Inc. CFS1/2CT52R753J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	75 kOhms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R221J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	220 Ohms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R152J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	1500 Ohms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R5R1J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	5.1 Ohms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R103J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	10000 Ohms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R561J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	560 Ohms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R392J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	3.9 kOhms	2	Axial
KOA Speer Electronics, Inc. CFS1/2C102J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	1000 Ohms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R161J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	160 Ohms	2	Axial
KOA Speer Electronics, Inc. CFS1/2CT52R681J	2.85 mm	6.3 mm	0.112 in	0.248 in	Axial	5 %	0.5 W	0.5 W	350 ppm/°C	-450 ppm/°C	155 °C	-55 °C	Carbon Film	680 Ohms	2	Axial
