EDAC Inc.

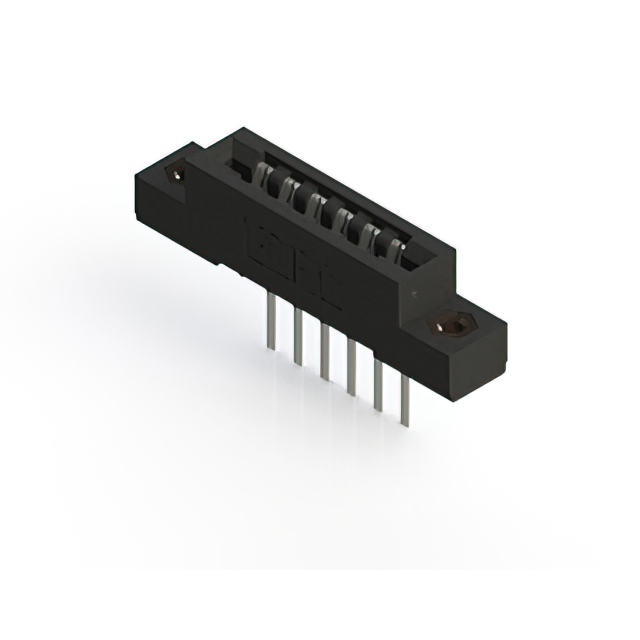

CARD EDGE CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-006-445-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, 0.156 INCH PITCH, WIRE WRAP TERMINAL, #4-40UNC, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-006-445-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	6
Number of Positions/Bay/Row [custom]	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

857-006 Series

...

Part	Termination Rows	Termination	Mounting Type	Contact Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Number of Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Material	Number of Positions	Number of Positions/Bay/Row [custom]	Material - Insulation	Read Out	Color	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Gender	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 857-006-441-104	1	Wire Wrap	Through Hole	Semi Bellows	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Copper Alloy	12	6	Polyphenylene Sulfide (PPS)	Dual	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin
EDAC Inc. 857-006-531-104	1	Solder	Through Hole	Semi Bellows	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	6	6	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Gold	10 Áin	0.25 Ám
EDAC Inc. 857-006-453-103	1	Solder	Through Hole Right Angle	Semi Bellows	2.95 mm	Floating Bobbin Flush Mount	0.116 in	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Copper Alloy	12	6	Polyphenylene Sulfide (PPS)	Dual	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin
EDAC Inc. 857-006-457-108	1	Solder	Through Hole Right Angle	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening		2	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Copper Alloy	12	6	Polyphenylene Sulfide (PPS)	Dual	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin
EDAC Inc. 857-006-427-112	1	Solder	Through Hole	Semi Bellows		Side Mount Opening Unthreaded		1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	6	6	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin			3.25 mm	0.128 in
EDAC Inc. 857-006-427-102	1	Solder	Through Hole	Semi Bellows	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	6	6	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin
EDAC Inc. 857-006-457-102	1	Solder	Through Hole Right Angle	Semi Bellows	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Copper Alloy	12	6	Polyphenylene Sulfide (PPS)	Dual	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin
EDAC Inc. 857-006-441-101	1	Wire Wrap	Through Hole	Semi Bellows				2	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Copper Alloy	12	6	Polyphenylene Sulfide (PPS)	Dual	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin
EDAC Inc. 857-006-445-108	1	Wire Wrap	Through Hole	Semi Bellows		4-40 Flush Mount Threaded Insert Top Opening		1	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Copper Alloy	6	6	Polyphenylene Sulfide (PPS)	Single	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Tin
EDAC Inc. 857-006-554-102	1	Solder	Through Hole Right Angle	Semi Bellows	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	2	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Copper Alloy	12	6	Polyphenylene Sulfide (PPS)	Dual	Black	125 °C	-40 °C	0.156 in	3.96 mm	Female	Gold	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 52.72

Description

General part information

857-006 Series

6 Position Female Connector Non Specified - Single Edge Tin 0.156" (3.96mm) Black
