2-963217-1

Active

TE Connectivity AMP Connectors

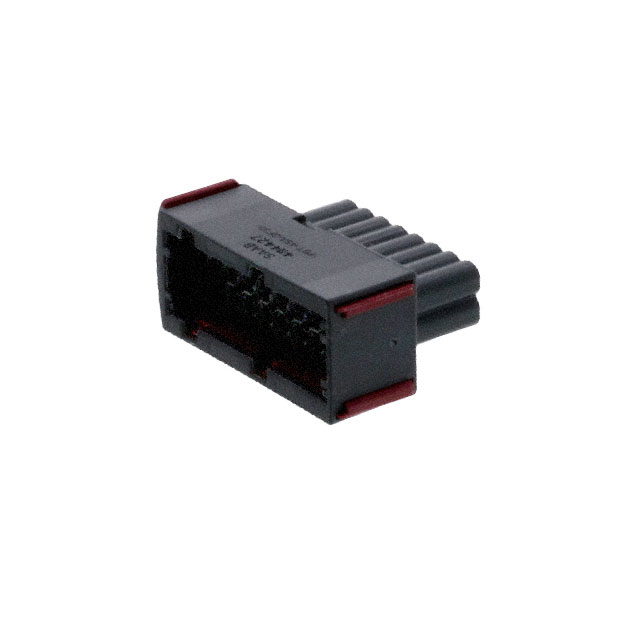

CONN RCPT HSG 16POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 16POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-963217-1	963217 Series

Color	Gray	Blue, Black, Gray
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Features	Sealed	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	16	16
Number of Rows	2	2
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Row Spacing [Max]	0.236 in	0.236 in
Row Spacing [Max]	6 mm	6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN RCPT HSG 16POS 5.00MM

Part	Row Spacing [Max]	Row Spacing [Max]	Contact Termination	Features	Note	Pitch [x]	Pitch [x]	Contact Type	Color	Number of Positions	Insulation Material	Mounting Type	Connector Type	Number of Rows
TE Connectivity AMP Connectors 3-963217-1	0.236 in	6 mm	Crimp	Sealed	Contacts Not Included	5 mm	0.197 in	Female Socket	Blue	16	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Receptacle	2
TE Connectivity AMP Connectors 1-963217-1	0.236 in	6 mm	Crimp	Sealed	Contacts Not Included	5 mm	0.197 in	Female Socket	Black	16	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Receptacle	2
TE Connectivity AMP Connectors 2-963217-1	0.236 in	6 mm	Crimp	Sealed	Contacts Not Included	5 mm	0.197 in	Female Socket	Gray	16	Polybutylene Terephthalate (PBT), Glass Filled	Free Hanging (In-Line)	Receptacle	2

General part information

16 Rectangular Connectors - Housings Receptacle Gray 0.197" (5.00mm)
