Connectors, Interconnects

2-963217-1

Active

TE Connectivity Raychem Cable Protection

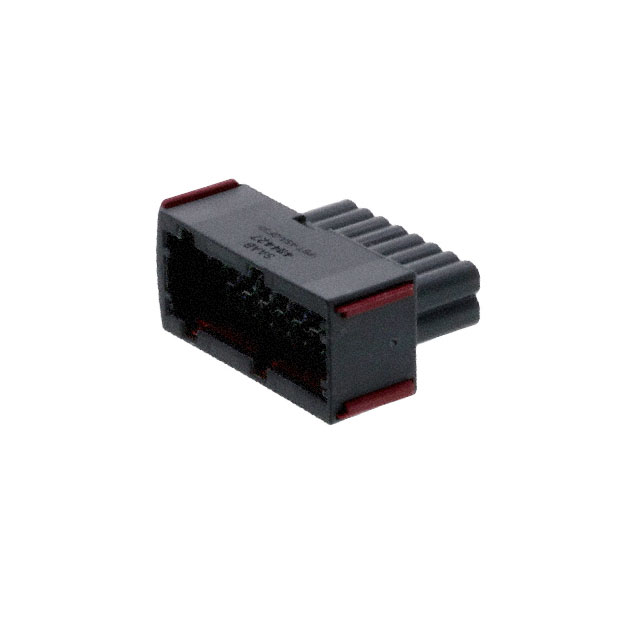

CONN RCPT HSG 16POS 5.00MM

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 16POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	2-963217-1

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Number of Rows	2
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

Part	Number of Positions	Connector Type	Contact Type	Note	Color	Contact Termination	Mounting Type	Features	Pitch [x]	Pitch [x]	Row Spacing [Max]	Row Spacing [Max]	Insulation Material	Number of Rows
TE Connectivity Raychem Cable Protection 1-963217-1	16	Receptacle	Female Socket	Contacts Not Included	Black	Crimp	Free Hanging (In-Line)	Sealed	5 mm	0.197 in	0.236 in	6 mm	Polybutylene Terephthalate (PBT) Glass Filled	2
TE Connectivity Raychem Cable Protection 2-963217-1	16	Receptacle	Female Socket	Contacts Not Included	Gray	Crimp	Free Hanging (In-Line)	Sealed	5 mm	0.197 in	0.236 in	6 mm	Polybutylene Terephthalate (PBT) Glass Filled	2
TE Connectivity Raychem Cable Protection 3-963217-1	16	Receptacle	Female Socket	Contacts Not Included	Blue	Crimp	Free Hanging (In-Line)	Sealed	5 mm	0.197 in	0.236 in	6 mm	Polybutylene Terephthalate (PBT) Glass Filled	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Rectangular Connectors - Housings Receptacle Gray 0.197" (5.00mm)
