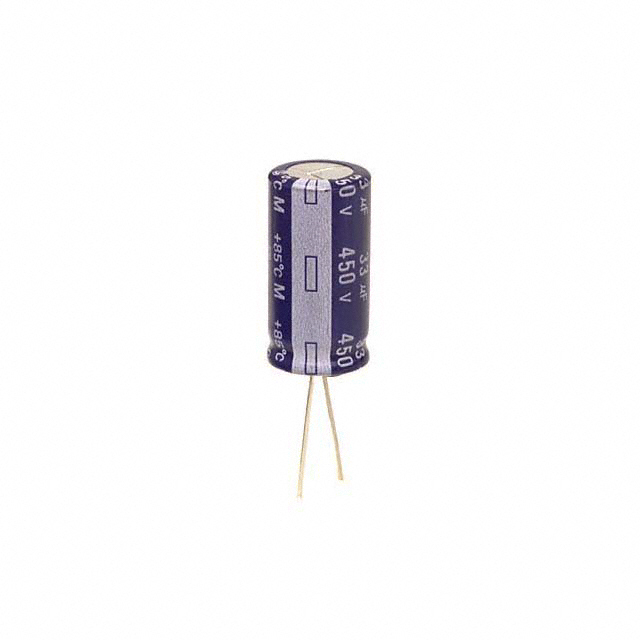

ECA-2WM330

Active

Panasonic Industrial Automation Sales

CAP ALUM 33UF 20% 450V RADIAL TH

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM 33UF 20% 450V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-2WM330

Applications	General Purpose
Capacitance	33 ÁF
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	484.5 mA
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	450 V

Part	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Polarization	Voltage - Rated	Applications	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Tolerance	Capacitance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales ECA-2WM330	Radial Can	0.63 in	16 mm	Through Hole	-25 °C	85 °C	2000 Hrs	Polar	450 V	General Purpose	484.5 mA	7.5 mm	0.295 in	20 %	33 ÁF
Panasonic Industrial Automation Sales ECA-2WM2R2B	Radial Can	0.394 in	10 mm	Through Hole	-25 °C	85 °C	2000 Hrs	Polar	450 V	General Purpose	74.8 mA	5 mm	0.197 in	20 %	2.2 µF	44 mA	0.531 "	13.5 mm
Panasonic Industrial Automation Sales ECA-2WM100	Radial Can	0.492 in	12.5 mm	Through Hole	-25 °C	85 °C	2000 Hrs	Polar	450 V	General Purpose	221 mA	5 mm	0.197 in	20 %	10 µF	130 mA	0.866 in		22 mm
Panasonic Industrial Automation Sales ECA-2WM3R3	Radial Can	0.394 in	10 mm	Through Hole	-25 °C	85 °C	2000 Hrs	Polar	450 V	General Purpose	102 mA	5 mm	0.197 in	20 %	3.3 µF	60 mA	0.669 in		17 mm
Panasonic Industrial Automation Sales ECA-2WM220	Radial Can	0.63 in	16 mm	Through Hole	-25 °C	85 °C	2000 Hrs	Polar	450 V	General Purpose	357 mA	7.5 mm	0.295 in	20 %	22 µF	210 mA	1.063 in		27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

33 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
