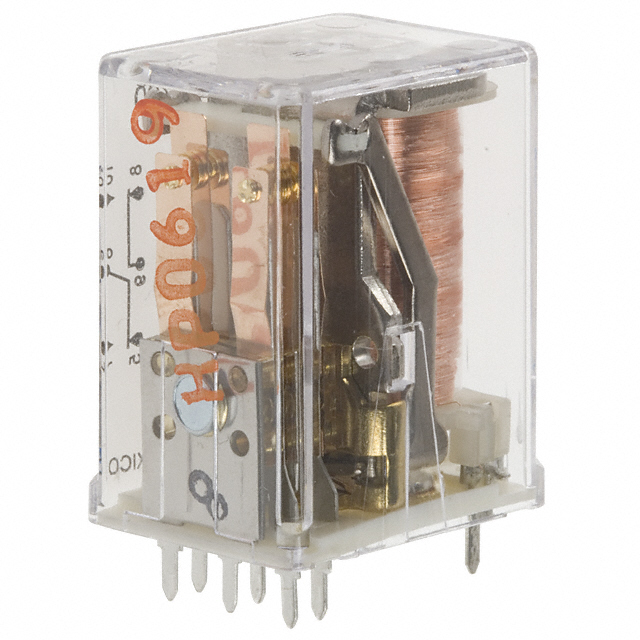

R10S-E2Z1-J16.0K
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE SPDT 2A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDefinition Relay Spec Sheet
R10S-E2Z1-J16.0K
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GENERAL PURPOSE SPDT 2A
Deep-Dive with AI
DocumentsDefinition Relay Spec Sheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R10S-E2Z1-J16.0K |
|---|---|
| Approval Agency | CSA, UR |
| Coil Resistance | 16 kOhms |
| Coil Type | Non Latching |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver (Ag) |
| Contact Rating (Current) | 2 A |
| Load - Max Switching | 240 VA, 60 W |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Switching Voltage | 30 VDC, 120 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 350 | $ 81.48 | |
Description
General part information
R10S-E2 Series
General Purpose Relay SPDT (1 Form C) Through Hole
