895-104-525-808
ActiveEDAC Inc.
CONN EDGE DUAL FML 104POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-104-525-808
ActiveEDAC Inc.
CONN EDGE DUAL FML 104POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-104-525-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 104 |
| Number of Positions/Bay/Row [custom] | 52 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
895-104 Series
...
| Part | Termination Rows | Pitch [x] | Pitch [x] | Number of Rows | Termination | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Mounting Type | Material - Insulation | Number of Positions | Gender | Color | Contact Type | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | |||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder Eyelet(s) | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | |||||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | M3 Threaded Insert Top Mount Opening | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | |||||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Side Mount Opening Unthreaded | Board Edge Straddle Mount | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | Card Extender | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | |||||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | |||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Wire Wrap | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | Side Mount Opening Unthreaded | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | |||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Wire Wrap | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Through Hole | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | |||
EDAC Inc. | 2 | 2.54 mm | 0.1 in | 2 | Solder | Gold | 125 °C | -40 °C | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 52 | Dual | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Board Edge Straddle Mount | Polyphenylene Sulfide (PPS) | 104 | Female | Black | Cantilever | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-104 Series

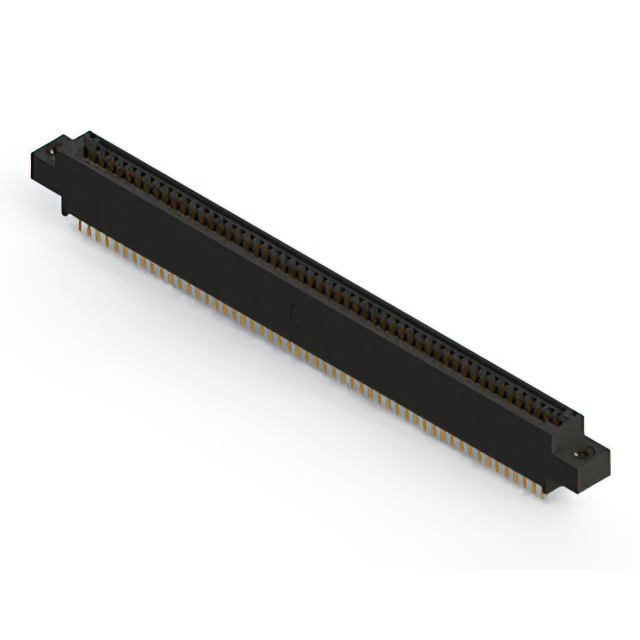

104 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
