Part	Type	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - UL	Contact Mating Finish	Positions Per Level	Mounting Type	Pitch	Header Orientation	Number of Positions	Termination Style	Current - UL	Color	Contact Tail Length	Contact Material	Material Flammability Rating	Housing Material	Insulation Height	Header Orientation Angle
McGill Microwave Systems OQ065E00B000G	Header Male Pins Shrouded (4 Side)	1	-45 °C	130 °C	300 V	Tin	6	Through Hole	5.08 mm	Vertical	6	Solder	20 A	Black	0.102 in	Copper	UL94 V-0	LCP Liquid Crystal Polymer	0.472 in
McGill Microwave Systems OQ065E01B000G	Header Male Pins Shrouded (4 Side)	1	-45 °C	130 °C	300 V	Tin	6	Through Hole	5.08 mm	Right Angle	6	Solder	20 A	Black	0.102 in	Copper	UL94 V-0	LCP Liquid Crystal Polymer	0.339 in	90 °

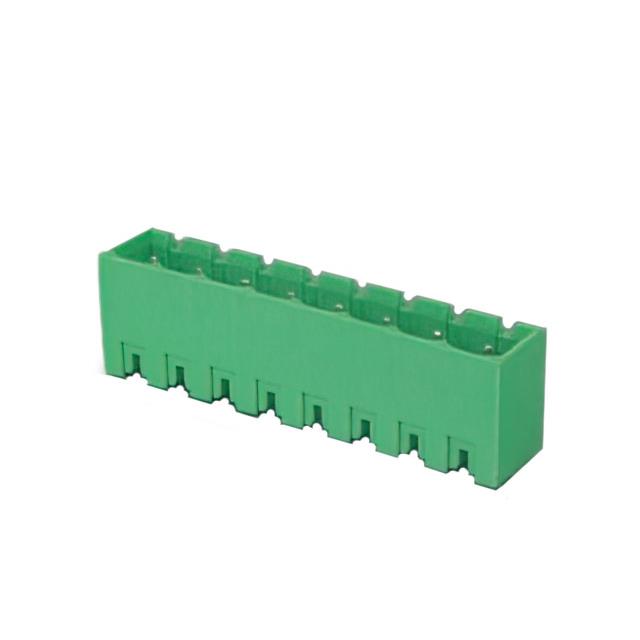

McGill Microwave Systems OQ065450000G		1					6		5.08 mm	Vertical	6			Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
