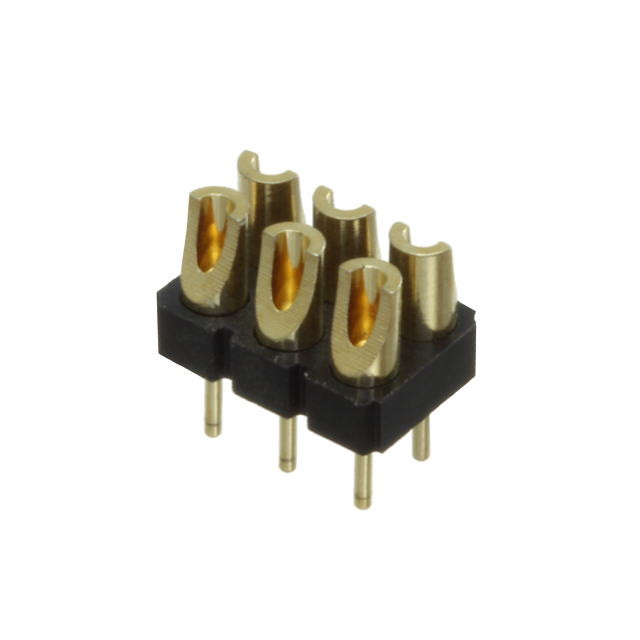

480-10-206-00-002000

Active

Mill-Max Manufacturing Corp.

CONN HDR STRIP SOLDER 6POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

480-10-206-00-002000

Active

Mill-Max Manufacturing Corp.

CONN HDR STRIP SOLDER 6POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	480-10-206-00-002000

Color	Black
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Type	Solder Cup
Mounting Type	Through Hole
Number of Positions	6
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

480-10 Series

Part	Pitch [x]	Pitch [x]	Contact Type	Connector Type	Mounting Type	Contact Finish	Row Spacing [x]	Row Spacing	Number of Rows	Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color
Mill-Max Manufacturing Corp. 480-10-214-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	14	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-206-00-002000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	6	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-214-00-002000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	14	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-240-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	40	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-242-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	42	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-254-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	54	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-250-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	50	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-212-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	12	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-226-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	26	10 Áin	0.25 Ám	Black
Mill-Max Manufacturing Corp. 480-10-264-00-001000	2.54 mm	0.1 in	Solder Cup	Header	Through Hole	Gold	0.1 in	2.54 mm	2	Solder	64	10 Áin	0.25 Ám	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.02
		67	$ 3.38
		134	$ 3.22
		536	$ 2.74
		1005	$ 2.33

Description

General part information

480-10 Series

6 Position Header Connector Solder Cup Gold

Documents

Technical documentation and resources

No documents available
