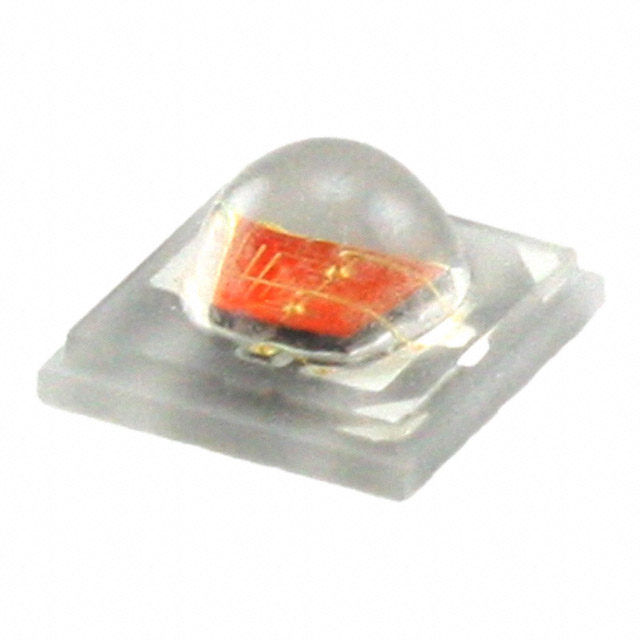

Specification	ELSW-F51Y1-0LPNM-AA3A5

Color	Amber
Current - Max	400 mA
Current - Test	350 mA
Height - Seated (Max)	0.088 in
Lumens/Watt	68 lm/W
Luminous Flux	56 lm
Luminous Flux (Maximum)	60 lm
Luminous Flux (Minimum)	52 lm
Mounting Type	Surface Mount
Package / Case	1414 (3535 Metric)
Package Name	SMD
Size / Dimension Length	0.138 in
Size / Dimension Width	0.138 in
Temperature - Test	25 °C
Thermal Resistance of Package	12 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.35 V
Wavelength	589 nm
Wavelength (Maximum)	593 nm
Wavelength (Minimum)	585 nm
Wavelength (Nominal)	589 nm

ELSW-F51 Series

Part	Temperature - Test	Color	Current - Test	Mounting Type	Luminous Flux (Maximum)	Luminous Flux	Luminous Flux (Minimum)	Height - Seated (Max)	Voltage - Forward (Vf) (Typ)	Wavelength (Nominal)	Wavelength (Maximum)	Wavelength	Wavelength (Minimum)	Package Name	Viewing Angle	Size / Dimension Width	Size / Dimension Length	Current - Max	Package / Case	Lumens/Watt	Thermal Resistance of Package
Everlight Electronics Co Ltd ELSW-F51R1-0LPNM-AR5R6	25 °C	Red	350 mA	Surface Mount	60 lm	56 lm	52 lm	0.088 in	2.35 V	625 nm	630 nm	625 nm	620 nm	SMD	120 °	0.138 in	0.138 in	400 mA	1414 (3535 Metric)	68 lm/W	12 °C/W
Everlight Electronics Co Ltd ELSW-F51Y1-0LPNM-AA3A5	25 °C	Amber	350 mA	Surface Mount	60 lm	56 lm	52 lm	0.088 in	2.35 V	589 nm	593 nm	589 nm	585 nm	SMD	120 °	0.138 in	0.138 in	400 mA	1414 (3535 Metric)	68 lm/W	12 °C/W
Everlight Electronics Co Ltd ELSW-F51O1-0LPNM-AR3R4	25 °C	Orange	350 mA	Surface Mount	60 lm	56 lm	52 lm	0.088 in	2.35 V	615 nm	620 nm	615 nm	610 nm	SMD	120 °	0.138 in	0.138 in	400 mA	1414 (3535 Metric)	68 lm/W	12 °C/W
