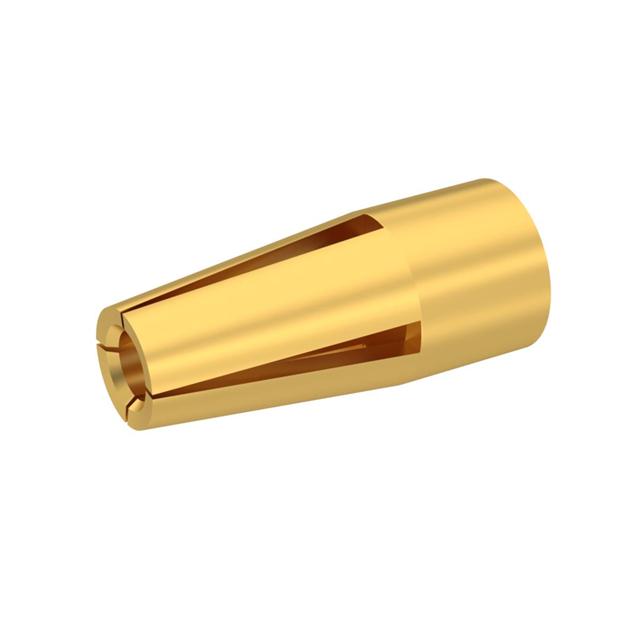

R280470050

Active

Radiall USA, Inc.

ACCESSORY / REMOVABLE CONTACT FO

Search across all available documentation for this part.

Active

Radiall USA, Inc.

ACCESSORY / REMOVABLE CONTACT FO

Technical Specifications

Parameters and characteristics for this part

Specification	R280470050

Center Conductor Diameter [diameter]	0.77 mm
Center Conductor Diameter [diameter]	0.03 "
Contact Finish	Gold
Contact Material	Beryllium Copper
Contact Termination	Solder
Mounting Type	Free Hanging (In-Line)
Pin or Socket	Socket

Part	Contact Finish	Contact Termination	Mounting Type	Contact Material	Center Conductor Diameter [diameter]	Center Conductor Diameter [diameter]	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness
Radiall USA, Inc. R280470050	Gold	Solder	Free Hanging (In-Line)	Beryllium Copper	0.77 mm	0.03 "	Socket
Radiall USA, Inc. R280473100W	Gold	Solder	Free Hanging (In-Line)				Pin	51.2 Áin	1.3 Ám
Radiall USA, Inc. R280473100	Gold	Solder	Free Hanging (In-Line)				Pin	51.2 Áin	1.3 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 47.13

General part information

Socket Contact Coax Gold Solder
