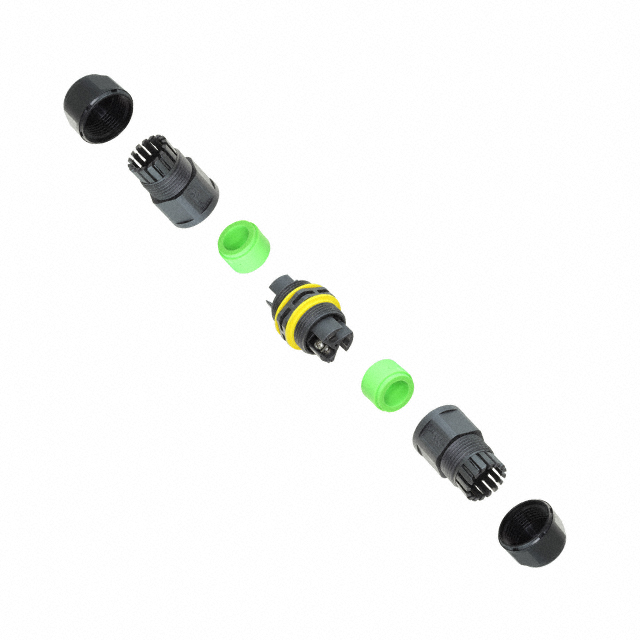

SC-L-UL11-02-GN

Active

CABLE JOINER, FICX UL11, PLASTIC, 20A, 02 PINS, SCREW THREAD, SCREW-IN, FIELD INSTALLABLE, 8.6 - 10.5MM, IP68 ROHS COMPLIANT: YE

Active

CABLE JOINER, FICX UL11, PLASTIC, 20A, 02 PINS, SCREW THREAD, SCREW-IN, FIELD INSTALLABLE, 8.6 - 10.5MM, IP68 ROHS COMPLIANT: YE

Description

General part information

Connector Cable Joiner Black, Green

Parameters and characteristics for this part

Specification	SC-L-UL11-02-GN

Accessory Type	Cable Joiner
Color	Green, Black
Contact Area (Max)	10.5 mm
Contact Area (Min)	8.5 mm
Features	2 Pole, Dust Tight, Waterproof
For Use With/Related Products	Cable
Material	Nylon 6, 6, Polyamide (PA66)

Part	Features	Color	Material	Accessory Type	For Use With/Related Products	Contact Area (Min)	Contact Area (Max)
McGill Microwave Systems SC-L-UL11-02-GN	2 Pole Dust Tight Waterproof	Black Green	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Cable	8.5 mm	10.5 mm
McGill Microwave Systems SC-L-UL11-02-RD	2 Pole Dust Tight Waterproof	Black Red	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Cable	10.5 mm	12.5 mm

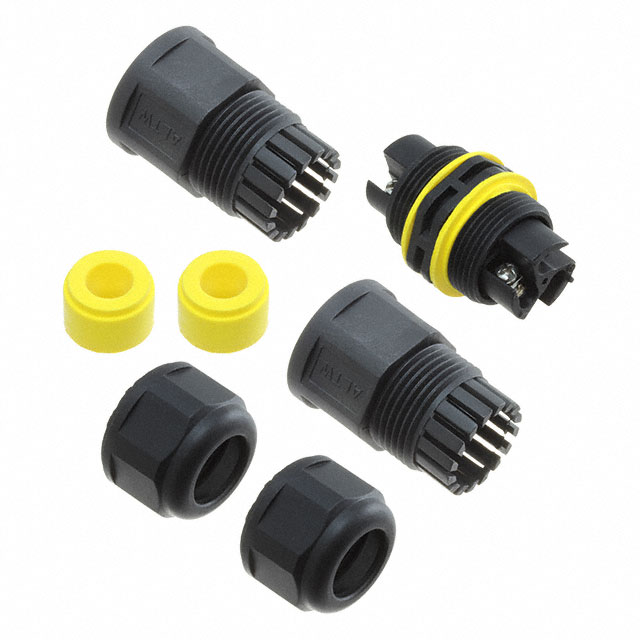

McGill Microwave Systems SC-L-UL11-03-YW	3 Pole Dust Tight Waterproof	Black Yellow	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Cable	6.5 mm	8.5 mm
McGill Microwave Systems SC-L-UL11-02-AA	2 Pole Dust Tight Waterproof		6 Glass Filled Nylon 6 Polyamide (PA66)	Cable Joiner	Cable	4.5 mm	12.5 mm
McGill Microwave Systems SC-L-UL11-03-BL	3 Pole Dust Tight Waterproof	Black Blue	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Cable	4.5 mm	6.5 mm

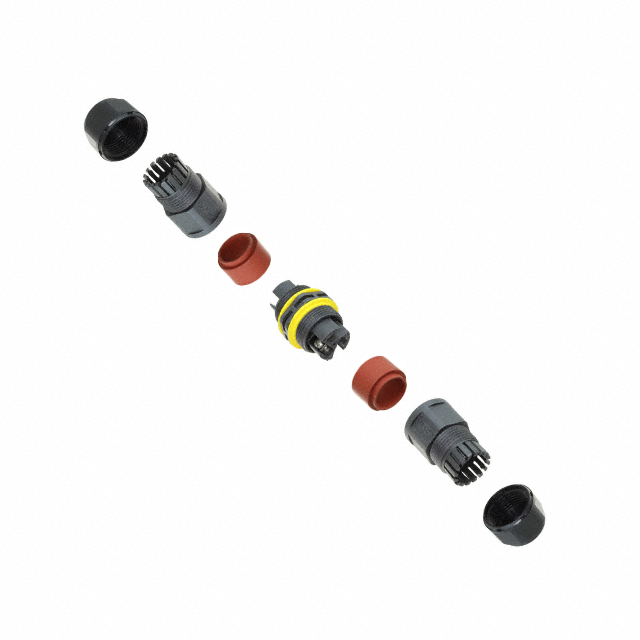

McGill Microwave Systems SC-L-UL11-04-RD	4 Pole Dust Tight Waterproof	Black Red	6 Nylon 6 Polyamide (PA66)	Cable Joiner	Cable	10.5 mm	12.5 mm
