EPSA090067U-P5P-SZ

Obsolete

CUI Inc.

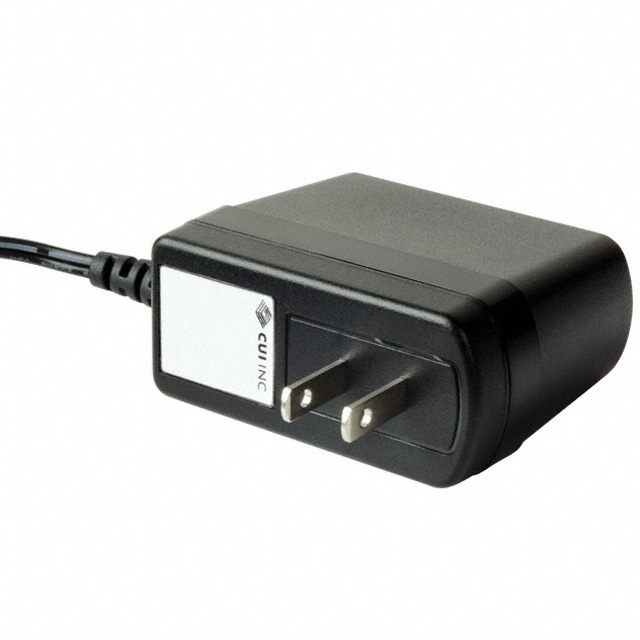

AC/DC WALL MOUNT ADAPTER 9V 6W

Search across all available documentation for this part.

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 9V 6W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9V 6 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC WALL MOUNT ADAPTER 9V 6W

Part	Power (Watts)	Efficiency	Input Connector	Voltage - Output	Region Utilized	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Approval Agency	Current - Output (Max) [Max]	Applications	Cord Length	Cord Length	Form	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Input Type	Output Connector [diameter]	Output Connector [x]	Output Connector	Output Connector [z]	Output Connector [y]
CUI Inc. EPSA090067U-P5P-SZ	6 W	Level V	NEMA 1-15P	9 V	North America	1.05 in	59.8 mm	26.6 mm	2.35 in	1.82 "	46.1 mm	CE, TUVgs	670 mA	ITE (Commercial)	60.2 in	1.53 m	Wall Mount (Class II)	Positive Center	90 VAC	264 VAC	40 °C	0 °C	63.05 g	0.139 lb	Fixed Blade	2.1 mm, 5.5 mm	9.5 mm	Barrel Plug
CUI Inc. EPSA090067UW-P5RP-SZ	6 W	Level V	NEMA 1-15P	9 V	North America	1.05 in	59.8 mm	26.6 mm	2.35 in	1.82 "	46.1 mm	CE, TUVgs	670 mA	ITE (Commercial)	60.2 in	1.53 m	Wall Mount (Class II)	Positive Center	90 VAC	264 VAC	40 °C	0 °C	63.05 g	0.139 lb	Fixed Blade		2.1 mm	Barrel Plug R/A	9.5 mm	5.5 mm
