KN6C25003P4--21

Active

Essentra Access Solutions

CLAMPING 3 ARM KNOB 1.750 IN DIA

Search across all available documentation for this part.

Active

Essentra Access Solutions

CLAMPING 3 ARM KNOB 1.750 IN DIA

Technical Specifications

Parameters and characteristics for this part

Part	Height [z]	Height [z]	Type	Shaft Size	Material	Style	Diameter [diameter]	Diameter [diameter]	Color	Indicator [custom]	Diameter
Essentra Access Solutions KN6C----B5-L-21	1.54 in	39.12 mm	Smooth	0.375 in 16	Polypropylene	Ball	41.4 mm	1.63 "	Black	No Indicator
Essentra Access Solutions KN6C----R3IB-21	1.15 in	29.21 mm	5 Arm	0.375 in 16	Polypropylene	Clamping	40.13 mm	1.58 "	Black	No Indicator
Essentra Access Solutions KN6C----S5--S21	2.5 in	63.5 mm	Smooth	0.375 in 16	Polypropylene		41.4 mm	1.63 "	Black	No Indicator
Essentra Access Solutions KN6C3000R7--S21	33.02 mm	33.02 mm	5 Arm	0.375 in 16	Polypropylene	Clamping	57.4 mm	2.26 in	Black	No Indicator
Essentra Access Solutions KN6C30004P4--21	1.04 in	26.42 mm	4 Arm	0.375 in 16	Nylon	Clamping	44.45 mm	1.75 in	Black	No Indicator
Essentra Access Solutions KN6C0875F2---21	0.53 in	13.46 mm	Fluted	0.375 in 16	Polypropylene	Clamping	34.54 mm	1.36 "	Black	No Indicator
Essentra Access Solutions KN6C----3P4B-21	1.05 in	26.67 mm	3 Arm	0.375 in 16	Nylon	Clamping	44.2 mm	1.74 in	Black	No Indicator
Essentra Access Solutions KN6C0500F4---21	0.86 in	21.84 mm	Fluted	0.375 in 16	Polypropylene	Clamping		1.71 in	Black	No Indicator	43.43 mm
Essentra Access Solutions KN6C25003P4--21	1.05 in	26.67 mm	3 Arm	0.375 in 16	Nylon	Clamping	44.2 mm	1.74 in	Black	No Indicator
Essentra Access Solutions KN6C----RT5--21	1.1 in	27.94 mm	3 Arm	0.375 in 16	Nylon	Clamping	51.31 mm	2.02 in	Black	No Indicator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

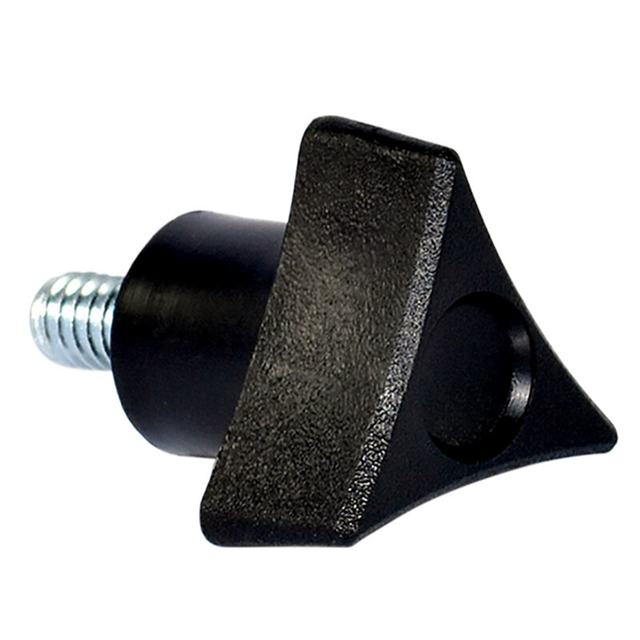

3 Arm Knob 3/8"-16 Shaft with No Indicator Nylon Black

Technical documentation and resources
