Q-0D0680005036i

Active

Amphenol Custom Cable

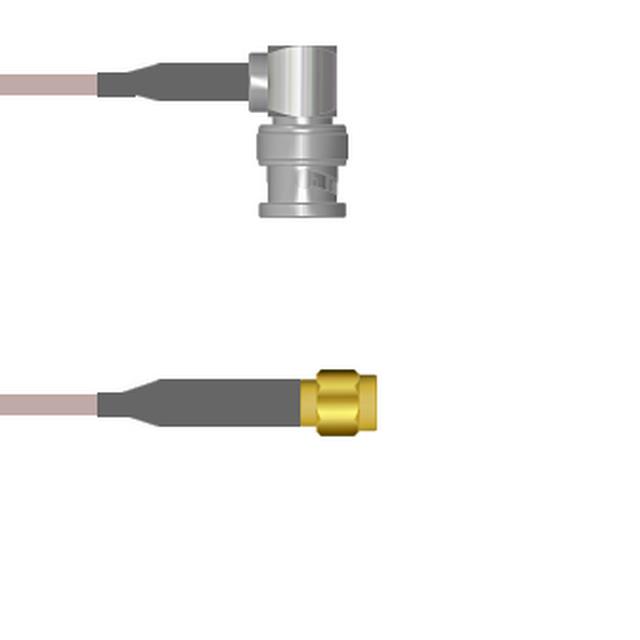

CBL ASSY RPSMA-BNC PLUG-PLUG 36"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D0680005036i

Active

Amphenol Custom Cable

CBL ASSY RPSMA-BNC PLUG-PLUG 36"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D0680005036i

1st Connector	RP-SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	BNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	91.44 cm
Length	36 in
Overall Impedance	50 Ohms
Style	RP-SMA to BNC

Q-0D0680 Series

Part	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	Features	Overall Impedance	Cable Type	2nd Connector	Color	1st Contact Gender	2nd Connector Mounting Type	Length	Length	Style	1st Connector	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0D06800050.5M	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-316	BNC Plug Right Angle	Copper	Female	Free Hanging (In-Line)	50 cm	19.69 "	RP-SMA to BNC	RP-SMA Plug
Amphenol Custom Cable Q-0D0680005.75M	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-316	BNC Plug Right Angle	Copper	Female	Free Hanging (In-Line)	750 mm	29.53 "	RP-SMA to BNC	RP-SMA Plug
Amphenol Custom Cable Q-0D0680003003M	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-174	BNC Plug Right Angle	Black	Female	Free Hanging (In-Line)	3 m	118.1 in	RP-SMA to BNC	RP-SMA Plug	9.8 '
Amphenol Custom Cable Q-0D0680005036i	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-316	BNC Plug Right Angle	Copper	Female	Free Hanging (In-Line)	91.44 cm	36 in	RP-SMA to BNC	RP-SMA Plug
Amphenol Custom Cable Q-0D0680005018i	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-316	BNC Plug Right Angle	Copper	Female	Free Hanging (In-Line)			RP-SMA to BNC	RP-SMA Plug		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D0680005072i	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-316	BNC Plug Right Angle	Copper	Female	Free Hanging (In-Line)	1.8 m	72 in	RP-SMA to BNC	RP-SMA Plug	6 ft
Amphenol Custom Cable Q-0D0680005084i	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-316	BNC Plug Right Angle	Copper	Female	Free Hanging (In-Line)	2.1 m	84 in	RP-SMA to BNC	RP-SMA Plug	7 ft
Amphenol Custom Cable Q-0D0680003048i	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-174	BNC Plug Right Angle	Black	Female	Free Hanging (In-Line)	1200 mm	48 in	RP-SMA to BNC	RP-SMA Plug	4 ft
Amphenol Custom Cable Q-0D0680003003i	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-174	BNC Plug Right Angle	Black	Female	Free Hanging (In-Line)	76.2 mm	3 in	RP-SMA to BNC	RP-SMA Plug
Amphenol Custom Cable Q-0D0680005012i	Male	Free Hanging (In-Line)	4 GHz	Shielded	50 Ohms	RG-316	BNC Plug Right Angle	Copper	Female	Free Hanging (In-Line)	304.8 mm	12 "	RP-SMA to BNC	RP-SMA Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.58
		25	$ 76.07
		50	$ 74.55
		100	$ 73.03
		250	$ 71.51

Description

General part information

Q-0D0680 Series

Cable Assembly Coaxial RP-SMA to BNC RG-316 36.00" (914.40mm)

Documents

Technical documentation and resources

No documents available
