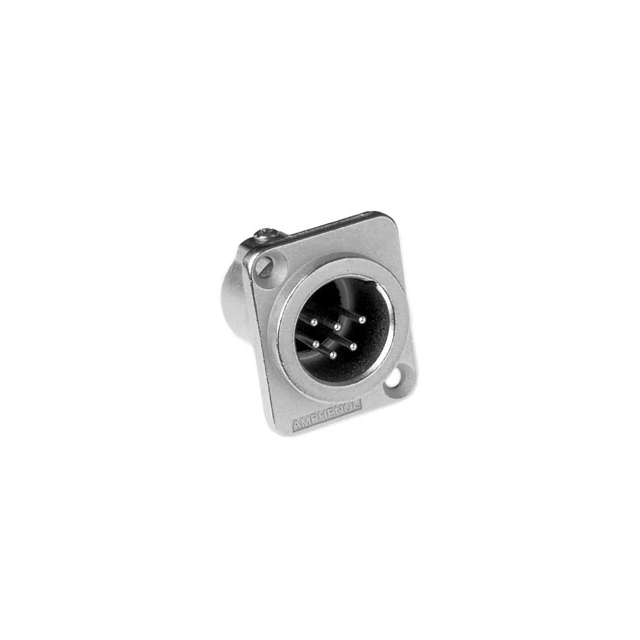

Specification	AC6AMDZ BULK

Applications	Audio
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide, PA66, Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	6
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded
Termination	Solder Cup

AC6AM Series

Part	Features	Primary Material	Applications	Cable Opening (Max)	Cable Opening (Min)	Shielding	Current Rating	Ingress Protection	Backshell Material, Plating	Shell Finish	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Shell Material	Number of Positions	Shell Size - Insert	Termination	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Color	Contact Material	Connector Type	Orientation	Insert Material	Mounting Feature

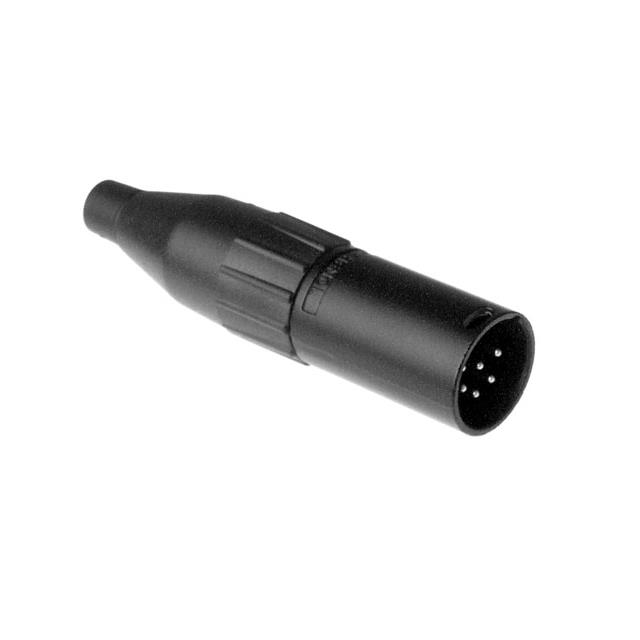

McGill Microwave Systems AC6AMB BULK	Backshell Cable Clamp	Metal	Audio	0.255 in	0.118 in	Unshielded	7.5 A	IP40	Polyphenylene Ether (PPE)	Black	Free Hanging (In-Line)	-25 °C	75 °C	Zinc Die Cast	6	XLR	Solder Cup	Latch Holder	Silver	UL94 V-0	Black	Brass	Male Pins Receptacle	Keyed
McGill Microwave Systems AC6AMDZ BULK	Ground	Metal	Audio			Shielded	7.5 A	IP40		Nickel	Panel Mount	-25 °C	75 °C	Zinc Die Cast	6	XLR	Solder Cup	Push-Pull	Silver	UL94 V-0	Silver	Brass	Male Pins Receptacle	Keyed	Glass Filled Nylon 6/6 PA66 Polyamide	Flange
