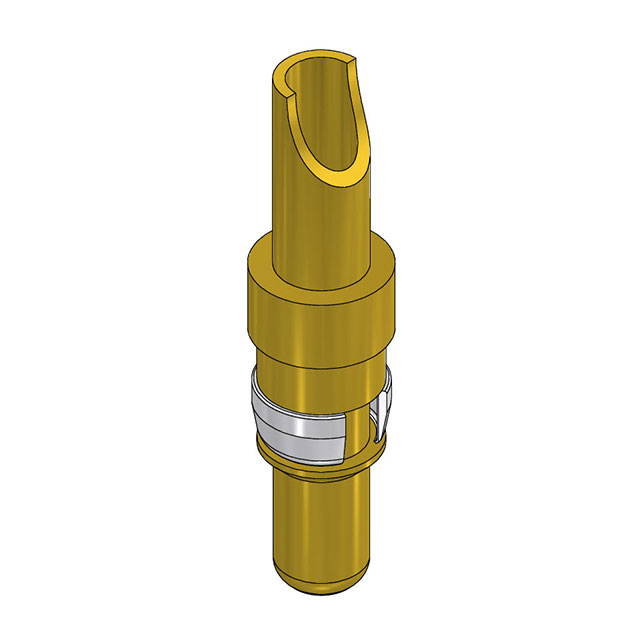

Specification	131A10029X

Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Form	Machined
Contact Material	Copper Alloy
Contact Termination	Solder Cup
Contact Type	Male Pin
Termination Finish	Gold
Termination Finish Thickness	8 Ąin
Type	Power
Wire Gauge (AWG) (Max)	14 AWG
Wire Gauge (AWG) (Min)	12 AWG

131A100 Series

Part	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Termination Finish Thickness	Contact Type	Contact Material	Type	Termination Finish	Contact Termination	Contact Form	Features	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Termination Finish Thickness

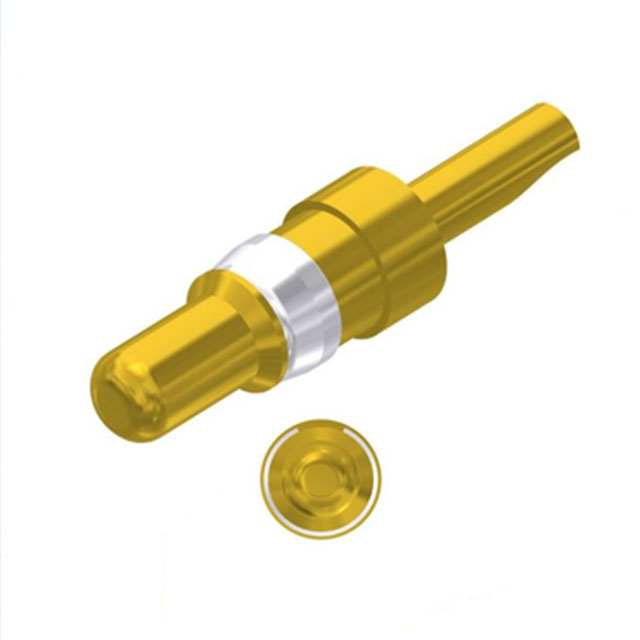

McGill Microwave Systems 131A10019X	Gold	20.5 AWG	16 AWG	Flash	Male Pin	Copper Alloy	Power	Gold	Solder Cup	Machined	IP20	0	Flash	Flash
McGill Microwave Systems 131A10029X	Gold	14 AWG	12 AWG		Male Pin	Copper Alloy	Power	Gold	Solder Cup	Machined		30 µin			8 Ąin
McGill Microwave Systems 131A10049X	Gold	10 AWG	8 AWG		Male Pin	Copper Alloy	Power	Gold	Solder Cup	Machined		30 µin			8 Ąin
