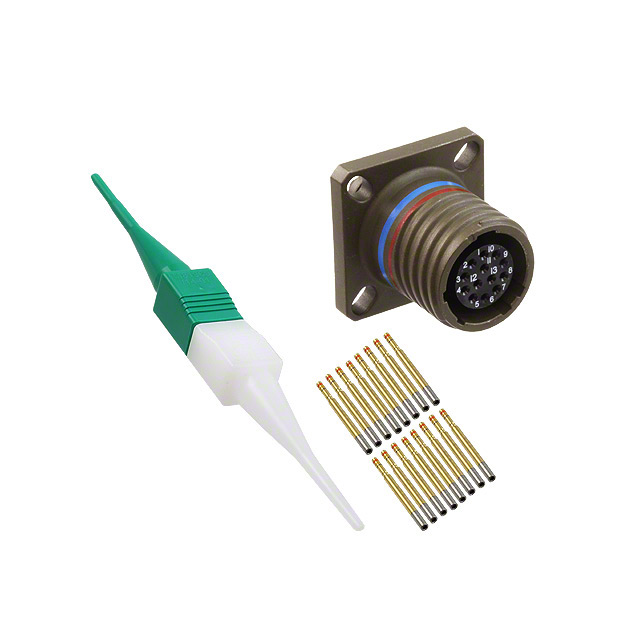

D38999/20JB35SN
ActiveITT Cannon, LLC
CONN RCPT FMALE 13POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
D38999/20JB35SN
ActiveITT Cannon, LLC
CONN RCPT FMALE 13POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20JB35SN |
|---|---|
| Applications | Aviation, Marine, Military |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Number of Positions | 13 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Composite |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Composite |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 11 |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 78.70 | |
| 10 | $ 61.20 | |||
| 25 | $ 59.44 | |||
| 50 | $ 53.41 | |||
| Bulk | 1 | $ 68.75 | ||
| 10 | $ 59.59 | |||
| 25 | $ 52.58 | |||
| 50 | $ 47.04 | |||
| 100 | $ 41.25 | |||
Description
General part information
D38999/20JB Series
13 Position Circular Connector Receptacle, Female Sockets Crimp
Documents
Technical documentation and resources
No documents available
