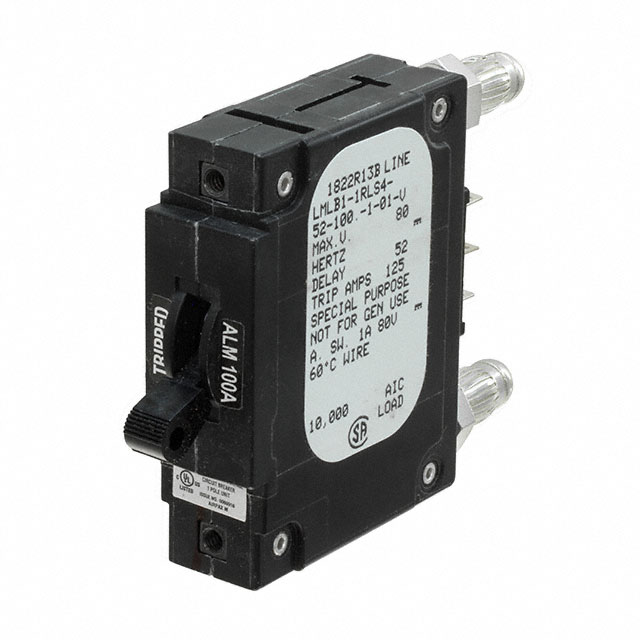

LMLB1-1RLS4-52-100.-1-01-V

Active

Sensata-Airpax

CIR BRKR MAG-HYDR 100A LEVER

Search across all available documentation for this part.

Active

Sensata-Airpax

CIR BRKR MAG-HYDR 100A LEVER

Technical Specifications

Parameters and characteristics for this part

Part	Number of Poles	Current Rating (Amps)	Breaker Type	Actuator Type	Approval Agency	Voltage Rating - DC	Illumination
Sensata-Airpax LMLB1-1RLS4-35530-9-V
Sensata-Airpax LMLB1-1RLS4-51-100.-1-01-V	1	100 A	Magnetic (Hydraulic Delay)	Lever
Sensata-Airpax LMLB1-1RS5-37568-90-V	1		Magnetic (Hydraulic Delay)	Lever
Sensata-Airpax LMLB1-1RLS4-52-35.0-1-01-V	1	35 A	Magnetic (Hydraulic Delay)	Lever
Sensata-Airpax LMLB1-1RLS4-52-100.-1-01-V	1	100 A	Magnetic (Hydraulic Delay)	Lever	UL489	80 V
Sensata-Airpax LMLB1-1RLS4-51-30.0-1-01-V	1	30 A	Magnetic (Hydraulic Delay)	Lever
Sensata-Airpax LMLB1-1RLS4-40759-11-V	1		Magnetic (Hydraulic Delay)	Lever			None
Sensata-Airpax LMLB1-1RLS4-52-80.0-1-01-V	1	80 A	Magnetic (Hydraulic Delay)	Lever
Sensata-Airpax LMLB1-1RLS4-35530-11-V
Sensata-Airpax LMLB1-1RLS4-35530-10-V	1		Magnetic (Hydraulic Delay)	Lever			None

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.06

General part information

Circuit Breaker Magnetic (Hydraulic Delay) 100A AC 80 V DC Lever Panel Mount

Technical documentation and resources
