TDR 2-1211SM

Active

Traco Power

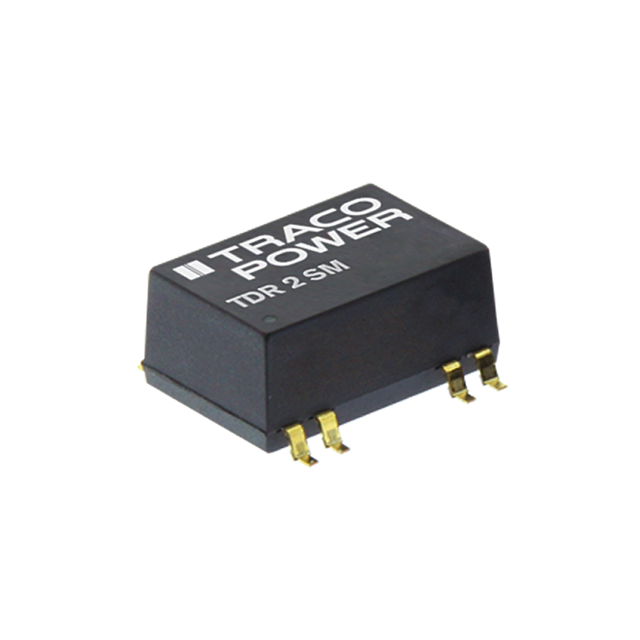

DC DC CONVERTER 5V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDR 2-1211SM

Active

Traco Power

DC DC CONVERTER 5V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 28.30
		10	$ 24.81
		25	$ 23.99
		50	$ 23.39
		100	$ 22.80
		250	$ 22.05
		500	$ 19.45

Description

General part information

TDR 2 Series

Isolated Module DC DC Converter 1 Output 5V 400mA 9V - 18V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TDR 2-1211SM	TDR 2 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	67 - 83 mA
Current - Output (Max)	-	67 mA
Current - Output (Max)	-	83 mA
Current - Output (Max) [Max]	400 mA	134 - 400 mA
Efficiency	81 %	79 - 84 %
Features	Remote On/Off, SCP	Remote On/Off, SCP
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-SMD Module, 7 Leads	14-SMD Module, 7 Leads, 14-DIP Module, 7 Leads
Power (Watts)	2 W	2 W
Size / Dimension [x]	18.9 mm	18.9 mm
Size / Dimension [x]	0.74 in	0.74 in
Size / Dimension [y]	12.8 mm	12.8 mm
Size / Dimension [y]	0.5 in	0.5 in
Size / Dimension [z]	8.7 mm	8.7 mm
Size / Dimension [z]	0.34 in	0.34 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	18 V	9 - 75 V
Voltage - Input (Min) [Min]	9 V	4.5 - 36 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	5 V	5 - 15 V
Voltage - Output 2	-	-15 - -12 V

TDR 2 Series

DC DC CONVERTER 15V 2W

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications	Voltage - Input (Max) [Max]	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Type	Voltage - Output 1	Number of Outputs	Package / Case	Power (Watts)	Current - Output (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
Traco Power TDR 2-2413SM	Remote On/Off, SCP	85 °C	-40 °C	Surface Mount	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	36 V	84 %	1.6 kV	18 V	Isolated Module	15 V	1	14-SMD Module, 7 Leads	2 W	134 mA
Traco Power TDR 2-1223WISM	Remote On/Off, SCP	85 °C	-40 °C	Surface Mount	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	18 V	81 %	1.6 kV	4.5 V	Isolated Module	15 V	2	14-SMD Module, 7 Leads	2 W		-15 V	67 mA	67 mA
Traco Power TDR 2-1211SM	Remote On/Off, SCP	85 °C	-40 °C	Surface Mount	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	18 V	81 %	1.6 kV	9 V	Isolated Module	5 V	1	14-SMD Module, 7 Leads	2 W	400 mA
Traco Power TDR 2-4822WI	Remote On/Off, SCP	85 °C	-40 °C	Through Hole	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	75 V	81 %	1.6 kV	18 V	Isolated Module	12 V	2	14-DIP Module, 7 Leads	2 W		-12 V	83 mA		83 mA
Traco Power TDR 2-2422WI	Remote On/Off, SCP	85 °C	-40 °C	Through Hole	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	36 V	81 %	1.6 kV	9 V	Isolated Module	12 V	2	14-DIP Module, 7 Leads	2 W		-12 V	83 mA		83 mA
Traco Power TDR 2-2422SM	Remote On/Off, SCP	85 °C	-40 °C	Surface Mount	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	36 V	84 %	1.6 kV	18 V	Isolated Module	12 V	2	14-SMD Module, 7 Leads	2 W		-12 V	83 mA		83 mA
Traco Power TDR 2-2411WI	Remote On/Off, SCP	85 °C	-40 °C	Through Hole	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	36 V	79 %	1.6 kV	9 V	Isolated Module	5 V	1	14-DIP Module, 7 Leads	2 W	400 mA
Traco Power TDR 2-0522SM	Remote On/Off, SCP	85 °C	-40 °C	Surface Mount	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	9 V	81 %	1.6 kV	4.5 V	Isolated Module	12 V	2	14-SMD Module, 7 Leads	2 W		-12 V	83 mA		83 mA
Traco Power TDR 2-4813WI	Remote On/Off, SCP	85 °C	-40 °C	Through Hole	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	75 V		1.6 kV	18 V	Isolated Module	15 V	1	14-DIP Module, 7 Leads	2 W	134 mA
Traco Power TDR 2-1212SM	Remote On/Off, SCP	85 °C	-40 °C	Surface Mount	8.7 mm	18.9 mm	12.8 mm	0.5 in	0.34 in	0.74 in	ITE (Commercial)	18 V	81 %	1.6 kV	9 V	Isolated Module	12 V	1	14-SMD Module, 7 Leads	2 W	167 mA
