Q-030340003002M
ActiveAmphenol Custom Cable

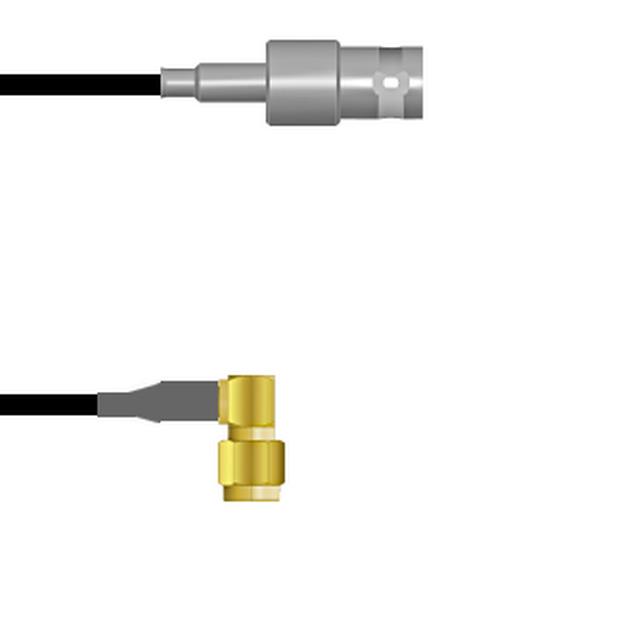

CBL ASSY BNC-SMA JACK-PLUG 6.6'
Deep-Dive with AI
Search across all available documentation for this part.
Q-030340003002M
ActiveAmphenol Custom Cable
CBL ASSY BNC-SMA JACK-PLUG 6.6'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-030340003002M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 6.6 ft |
| Length | 78.7 in |
| Length | 2 m |
| Overall Impedance | 50 Ohms |
| Style | BNC to SMA |
Q-030340 Series
| Part | 2nd Connector Mounting Type | 2nd Connector | Frequency - Max [Max] | Style | 1st Contact Gender | Length | Length | Length | 2nd Contact Gender | 1st Connector Mounting Type | 1st Connector | Features | Overall Impedance | Cable Type | Color | Length [x] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | 1 m | 3.3 ft | 39.4 in | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-174 | Black | |||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-316 | Copper | 9.843 " | 250 mm | ||||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | 2 m | 6.6 ft | 78.7 in | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-174 | Black | |||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | 750 mm | 29.53 " | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-316 | Copper | ||||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | 1.8 m | 6 ft | 72 in | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-316 | Copper | |||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-174 | Black | 9.843 " | 250 mm | ||||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | 609.6 mm | 24 " | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-174 | Black | ||||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | 76.2 mm | 3 in | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-174 | Black | ||||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-316 | Copper | 457.2 mm | 457.2 mm | ||||
Amphenol Custom Cable | Free Hanging (In-Line) | SMA Plug Right Angle | 4 GHz | BNC to SMA | Female | 2 m | 6.6 ft | 78.7 in | Male | Free Hanging (In-Line) | BNC Jack | Shielded | 50 Ohms | RG-316 | Copper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 85.58 | |
| 25 | $ 79.70 | |||
| 50 | $ 73.83 | |||
| 100 | $ 68.79 | |||
| 250 | $ 64.59 | |||
Description
General part information
Q-030340 Series
Cable Assembly Coaxial BNC to SMA RG-174 78.7" (2.0m) 6.6'
Documents
Technical documentation and resources
No documents available
