LTS-4801JS

Active

Diodes Inc

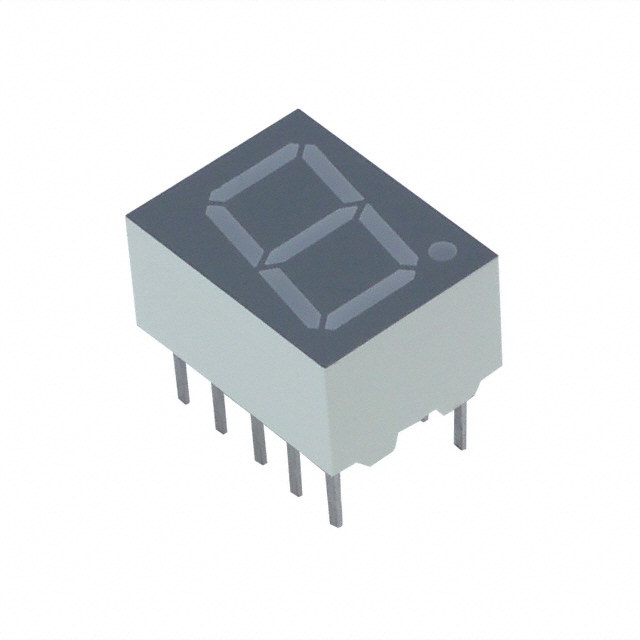

DISPLAY 7SEG 0.39" SGL YLW 10DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LTS-4801JS

Active

Diodes Inc

DISPLAY 7SEG 0.39" SGL YLW 10DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTS-4801JS

Color	Yellow
Common Pin	Common Anode
Current - Test	20 mA
Digit/Alpha Size	0.39 in
Digit/Alpha Size	10 mm
Display Type	7-Segment
Millicandela Rating	0.87 mcd
Number of Characters [custom]	1
Power Dissipation (Max) [Max]	70 mW
Voltage - Forward (Vf) (Typ)	2.05 V
Wavelength - Peak	588 nm

LTS-4801 Series

Part	Common Pin	Display Type	Millicandela Rating	Color	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Number of Characters [custom]	Current - Test	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
Diodes Inc LTS-4801JS	Common Anode	7-Segment	0.87 mcd	Yellow	0.39 in	10 mm	70 mW	1	20 mA	2.05 V	588 nm
Diodes Inc LTS-4801HR-NBJ
Diodes Inc LTS-4801WC	Common Anode	7-Segment	3.4 mcd	Red	0.39 in	10 mm	75 mw	1	20 mA	1.8 V	660 nm	7 mm	0.276 in	9.7 mm	0.382 in	0.504 "	12.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.42
		36	$ 0.85
		108	$ 0.75
		504	$ 0.64
		1008	$ 0.61
		2016	$ 0.58
		5004	$ 0.54
		10008	$ 0.52

Description

General part information

LTS-4801 Series

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2.05V 20mA 0.508" H x 0.382" W x 0.276" D (12.90mm x 9.70mm x 7.00mm) 10-DIP (0.300", 7.62mm)
