2961312

Active

Phoenix Contact

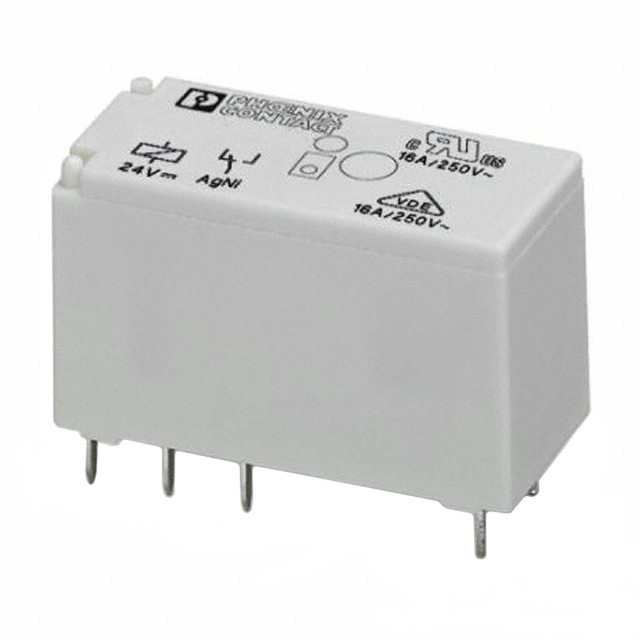

RELAY GEN PURPOSE SPDT 16A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2961312

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 16A 24V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.66
		10	$ 8.09
		50	$ 7.44
		100	$ 6.88
		250	$ 6.55
		500	$ 6.52
Newark	Each	1	$ 10.32
		10	$ 9.93
		50	$ 9.33
		100	$ 8.61
		250	$ 8.03
		500	$ 7.63
		1000	$ 7.20

Description

General part information

29613 Series

General Purpose Relay SPDT (1 Form C) 24VDC Coil Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2961312	29613 Series

Approval Agency	cULus, EAC, UR	cULus, EAC, UR
Coil Current	17 mA	4.1 - 38 mA
Coil Resistance	1440 Ohms	2 - 1440 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	4.5 - 110 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C), SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A	6 - 16 A
Mounting Type	Through Hole	Through Hole
Operate Time	7 ms	5 - 8 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	3 ms	2.5 - 3 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	PC Pin	PC Pin

29613 Series

POWER RELAY, SPDT, 6A, 250A ROHS COMPLIANT: YES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Mounting Type	Release Time	Coil Type	Coil Voltage	Contact Material	Contact Form	Termination Style	Contact Rating (Current)	Operate Time	Approval Agency	Relay Type	Coil Resistance	Switching Voltage
Phoenix Contact 2961338	85 °C	-40 °C	4.1 mA	Through Hole	3 ms	Non Latching	110 VDC	Silver Nickel (AgNi)	SPDT (1 Form C)	PC Pin	16 A	7 ms	cULus, EAC, UR	General Purpose	26.6 kOhms	250 VAC, 250 VDC
Phoenix Contact 2961309	85 °C	-40 °C	33 mA	Through Hole	3 ms	Non Latching	12 VDC	Silver Nickel (AgNi)	SPDT (1 Form C)	PC Pin	16 A	7 ms	cULus, EAC, UR	General Purpose	360 Ohms	250 VAC, 250 VDC
Phoenix Contact 2961367	85 °C	-40 °C	38 mA	Through Hole	2.5 ms	Non Latching	4.5 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	PC Pin	6 A	5 ms	cULus, EAC, UR	General Purpose	119 Ohms	250 VAC, 250 VDC
Phoenix Contact 2961325	85 °C	-40 °C	8.2 mA	Through Hole	3 ms	Non Latching	60 VDC	Silver Nickel (AgNi)	SPDT (1 Form C)	PC Pin	16 A	7 ms	cULus, EAC, UR	General Purpose	7.34 kOhms	250 VAC, 250 VDC
Phoenix Contact 2961383	85 °C	-40 °C	9 mA	Through Hole	2.5 ms	Non Latching	18 VDC	Silver Tin Oxide (AgSnO)	SPDT (1 Form C)	PC Pin	6 A	5 ms	cULus, EAC, UR	General Purpose	2 kOhms	250 VAC, 250 VDC
Phoenix Contact 2961341	85 °C	-40 °C	17 mA	Through Hole	3 ms	Non Latching	24 VDC	Silver Tin Oxide (AgSnO)	SPST-NO (1 Form A)	PC Pin	16 A	8 ms	cULus, EAC, UR	General Purpose	1440 Ohms	250 VAC, 250 VDC
Phoenix Contact 2961312	85 °C	-40 °C	17 mA	Through Hole	3 ms	Non Latching	24 VDC	Silver Nickel (AgNi)	SPDT (1 Form C)	PC Pin	16 A	7 ms	cULus, EAC, UR	General Purpose	1440 Ohms	250 VAC, 250 VDC
