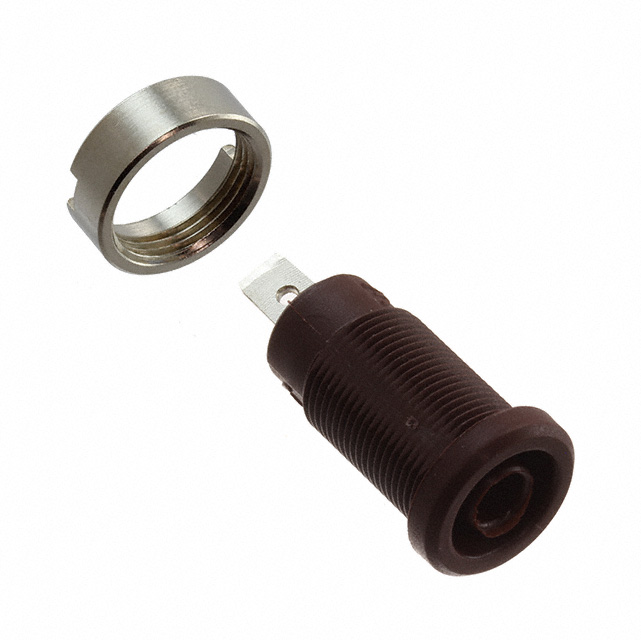

CT2910-1
ActiveCal Test Electronics
CONN BANANA JACK QC BROWN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CT2910-1
ActiveCal Test Electronics
CONN BANANA JACK QC BROWN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CT2910-1 |
|---|---|
| Body Material | Nylon, Polyamide (PA) |
| Color | Brown |
| Contact Finish | Nickel |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Mating End Insulated |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Plug/Mating Plug Diameter | Standard Banana |
| Termination | Quick Connect |
| Type | Banana Jack |
CT2910 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Body Material | Plug/Mating Plug Diameter | Insulation | Type | Color | Contact Finish | Termination | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|
Cal Test Electronics | -20 C | 80 C | Brass | Nylon Polyamide (PA) | Standard Banana | Mating End Insulated | Banana Jack | Brown | Nickel | Quick Connect | Female |
Cal Test Electronics | -20 C | 80 C | Brass | Nylon Polyamide (PA) | Standard Banana | Mating End Insulated | Banana Jack | White | Nickel | Quick Connect | Female |
Cal Test Electronics | -20 C | 80 C | Brass | Nylon Polyamide (PA) | Standard Banana | Mating End Insulated | Banana Jack | Yellow | Nickel | Quick Connect | Female |
Cal Test Electronics | -20 C | 80 C | Brass | Nylon Polyamide (PA) | Standard Banana | Mating End Insulated | Banana Jack | Green | Nickel | Quick Connect | Female |
Cal Test Electronics | -20 C | 80 C | Brass | Nylon Polyamide (PA) | Standard Banana | Mating End Insulated | Banana Jack | Red | Nickel | Quick Connect | Female |
Cal Test Electronics | -20 C | 80 C | Brass | Nylon Polyamide (PA) | Standard Banana | Mating End Insulated | Banana Jack | Black | Nickel | Quick Connect | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.50 | |
Description
General part information
CT2910 Series
Banana Jack Connector Standard Banana Quick Connect Brown
