623-009-261-533

Active

EDAC Inc.

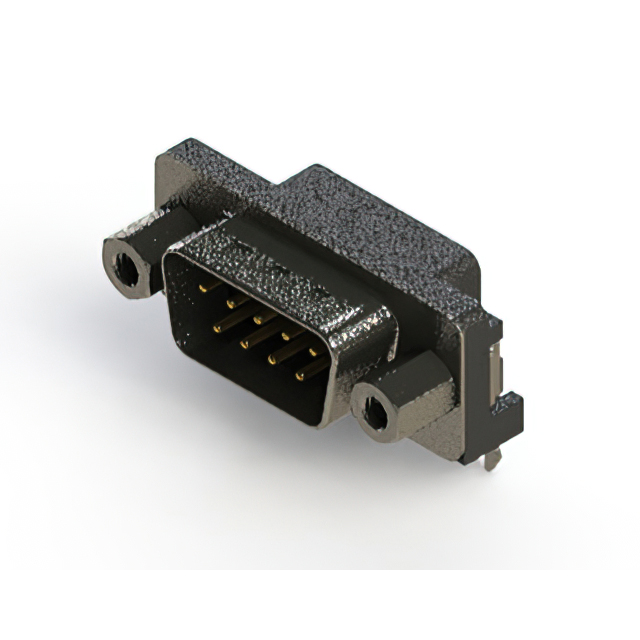

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

623-009-261-533

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	623-009-261-533

Backset Spacing	0.197 in
Backset Spacing	5 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

623-009 Series

Part	Features	Backset Spacing	Backset Spacing	Color	Contact Finish	Connector Style	Number of Positions	Termination	Flange Feature	Number of Rows	Contact Type	Current Rating (Amps)	Connector Type	Contact Material	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Mounting Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 623-009-261-032	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Housing/Shell (4-40)	2	Signal	3 A	Male Pins Plug	Copper Alloy	Flash	DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	85 °C	-55 °C	Nickel Plated Steel
EDAC Inc. 623-009-361-031	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Housing/Shell (Unthreaded)	2	Signal	3 A	Male Pins Plug	Copper Alloy		DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	85 °C	-55 °C	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 623-009-661-532	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Housing/Shell (4-40)	2	Signal	3 A	Male Pins Plug	Copper Alloy		DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	125 °C	-55 °C	Nickel Plated Steel	30 Áin	0.76 Ám
EDAC Inc. 623-009-261-033	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Female Screwlock (4-40) Mating Side	2	Signal	3 A	Male Pins Plug	Copper Alloy	Flash	DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	85 °C	-55 °C	Nickel Plated Steel
EDAC Inc. 623-009-361-533	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Female Screwlock (4-40) Mating Side	2	Signal	3 A	Male Pins Plug	Copper Alloy		DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	125 °C	-55 °C	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 623-009-661-533	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Female Screwlock (4-40) Mating Side	2	Signal	3 A	Male Pins Plug	Copper Alloy		DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	125 °C	-55 °C	Nickel Plated Steel	30 Áin	0.76 Ám
EDAC Inc. 623-009-361-032	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Housing/Shell (4-40)	2	Signal	3 A	Male Pins Plug	Copper Alloy		DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	85 °C	-55 °C	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 623-009-361-532	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Housing/Shell (4-40)	2	Signal	3 A	Male Pins Plug	Copper Alloy		DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	125 °C	-55 °C	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 623-009-261-533	Board Lock Grounding Indents Mounting Brackets Shielded	0.197 in	5 mm	Black	Gold	D-Sub	9	Solder	Female Screwlock (4-40) Mating Side	2	Signal	3 A	Male Pins Plug	Copper Alloy	Flash	DE E	1	Polyester Thermoplastic	Board Edge Right Angle Through Hole	UL94 V-0	125 °C	-55 °C	Nickel Plated Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 2.51
Newark	Each	25	$ 2.68
		100	$ 2.57
		250	$ 2.40
		500	$ 2.28
		1000	$ 2.17
		2500	$ 2.00

Description

General part information

623-009 Series

9 Position D-Sub Plug, Male Pins Connector
