887-006-520-104

Active

EDAC Inc.

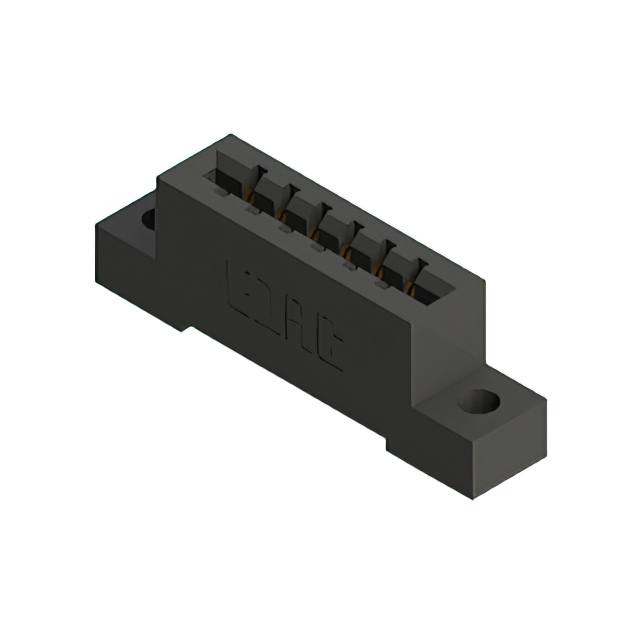

CARD EDGE CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

887-006-520-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-006-520-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	6
Number of Positions/Bay/Row [custom]	6
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

887-006 Series

...

Part	Termination Rows	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Color	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Finish	Material - Insulation	Card Type	Contact Material	Number of Rows	Gender	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Read Out	Termination
EDAC Inc. 887-006-500-603	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder Eyelet(s)
EDAC Inc. 887-006-544-103	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Wire Wrap
EDAC Inc. 887-006-500-112	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder Eyelet(s)
EDAC Inc. 887-006-558-112	1	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder
EDAC Inc. 887-006-520-607	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm		M3 Threaded Insert Top Mount Opening		Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder
EDAC Inc. 887-006-558-608	1	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm		4-40 Threaded Insert Top Mount Opening		Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder
EDAC Inc. 887-006-521-604	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder
EDAC Inc. 887-006-520-104	1	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder
EDAC Inc. 887-006-558-104	1	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder
EDAC Inc. 887-006-559-104	1	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	6	125 °C	-40 °C	6	Black	0.156 in	3.96 mm	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Gold	Polyphenylene Sulfide (PPS)	Non Specified - Single Edge	Copper Alloy	1	Female	10 Áin	0.25 Ám	Cantilever	Single	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.90

Description

General part information

887-006 Series

6 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
