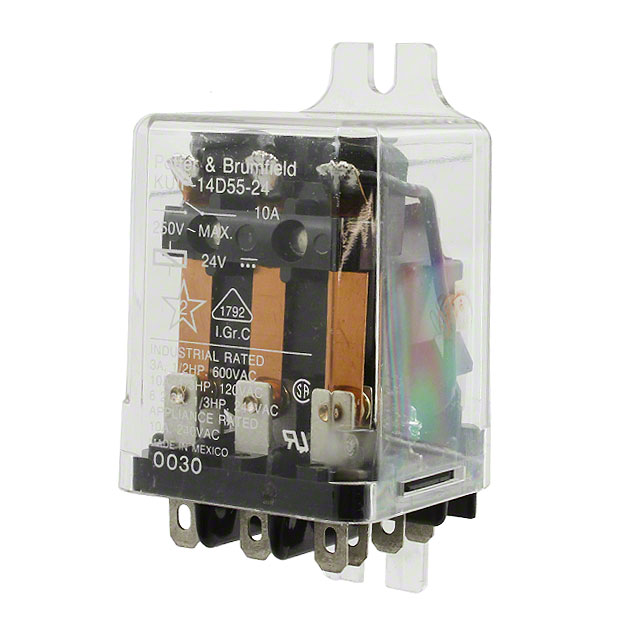

KUIP-14D55-24
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
KUIP-14D55-24
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE 3PDT 10A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KUIP-14D55-24 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 51 mA |
| Coil Insulation | Class B |
| Coil Resistance | 472 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 18 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 240 VAC |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
KUIP-14 Series
General Purpose Relay 3PDT (3 Form C) 24VDC Coil Chassis Mount
