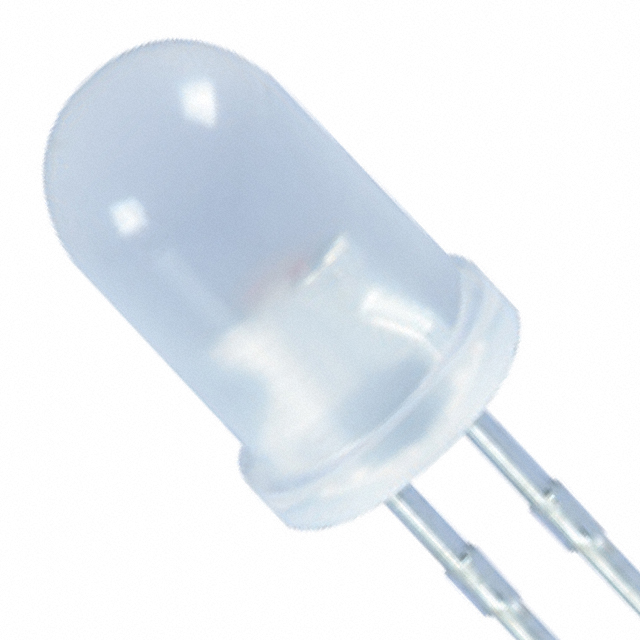

XLUYR58M
ActiveSunLED
LED RED/YLW DIFFUSED T-1 3/4 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLUYR58M |
|---|---|
| Color | Yellow, Red |
| Configuration | Bidirectional |
| Current - Test | 20mA Red, 20mA Yellow |
| Height (Max) [Max] [z] | 8.6 mm |
| Lens Color | White |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 9 mcd, 13 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 (5mm) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2 V, 2.1 V |
| Wavelength - Dominant [custom] | 588 nm, 617 nm |
| Wavelength - Peak | 590 nm, 627 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.14 | |
Description
General part information
XLUYR58 Series
Red, Yellow 617nm Red, 588nm Yellow LED Indication - Discrete 2V Red, 2.1V Yellow Radial
