Q-0D04G0003003M

Active

Amphenol Custom Cable

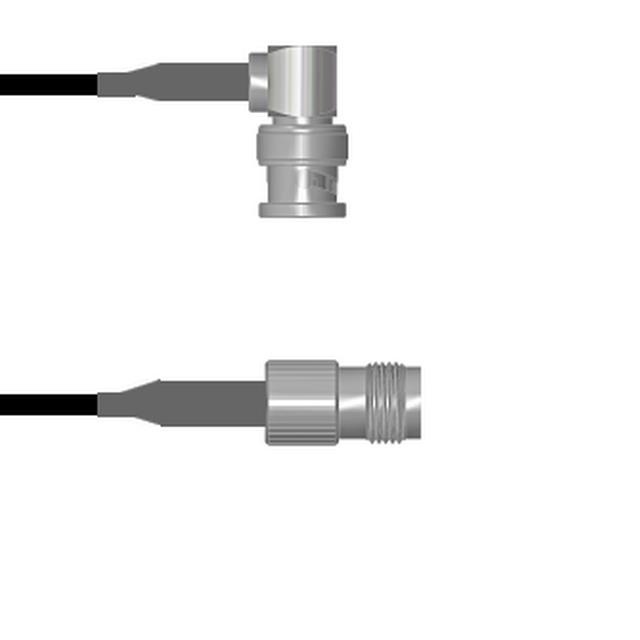

CBL ASSY BNC-TNC PLUG-JACK 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D04G0003003M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-JACK 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D04G0003003M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0D04G0 Series

Part	Cable Type	1st Connector Mounting Type	1st Connector	2nd Contact Gender	2nd Connector	Overall Impedance	Length	Length	Length	Color	Frequency - Max [Max]	1st Contact Gender	Style	Features	2nd Connector Mounting Type
Amphenol Custom Cable Q-0D04G0003001M	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	1 m	3.3 ft	39.4 in	Black	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G00032.5M	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	2.5 m	8.2 '	98.4 in	Black	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G0003003M	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	3 m	9.8 '	118.1 in	Black	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G0005036i	RG-316	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	91.44 cm		36 in	Copper	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G0005024i	RG-316	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	609.6 mm		24 "	Copper	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G00052.5M	RG-316	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	2.5 m	8.2 '	98.4 in	Copper	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G0005006i	RG-316	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	152.4 mm		6 in	Copper	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G0005003i	RG-316	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	76.2 mm		3 in	Copper	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G0003003i	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	76.2 mm		3 in	Black	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D04G0003072i	RG-174	Free Hanging (In-Line)	BNC Plug Right Angle	Female	TNC Jack	50 Ohms	1.8 m	6 ft	72 in	Black	4 GHz	Male	BNC to TNC	Shielded	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 59.64
		25	$ 55.54
		50	$ 51.45
		100	$ 47.94
		250	$ 45.01

Description

General part information

Q-0D04G0 Series

Cable Assembly Coaxial BNC to TNC RG-174 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
