10000700

Active

Bopla Enclosures

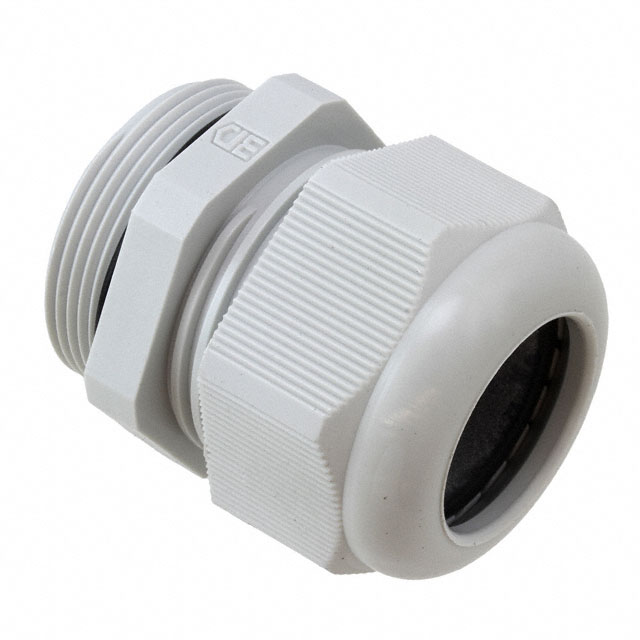

CABLE GLAND 18.01-25MM PG29

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10000700

Active

Bopla Enclosures

CABLE GLAND 18.01-25MM PG29

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.42
		10	$ 3.39
		25	$ 3.06
		50	$ 2.83
		100	$ 2.66

Description

General part information

10000 Series

Cable Gland Polyamide (PA), Nylon PG29 Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10000700	10000 Series

Accessory Type	-	Plug
Color	Gray	Gray
Features	-	IP65
For Use With/Related Products	-	BF 13/MBF 20, BoplaFlex Gland, BF 11, BF 29, BF 9/MBF 16, BF 7/MBF 12, BF 21/MBF 25, BF 16
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon	Polyethylene, Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-20 C	-20 C
Outside Cable Diameter (Max)	25 mm	25 mm
Outside Cable Diameter (Max)	-	6.5 - 18.01 mm
Outside Cable Diameter (Max)	-	14 mm
Outside Cable Diameter (Max)	-	0.551 "
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in	0.256 - 0.984 in
Outside Cable Diameter (Min)	-	0.157 - 0.197 in
Outside Cable Diameter (Min)	-	4 - 5 mm
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in	0.118 - 0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm	3 - 18.01 mm
Thread Length	0.433 in	0.315 - 0.433 in
Thread Length	11 mm	8 - 11 mm
Thread Size	PG29	PG9, PG11, PG7, PG29, PG21, PG13.5, PG16
Type	Cable Gland	Cable Gland

10000 Series

BLANKING PLUG BF 13 + MBF 20

Part	Features	Accessory Type	Material	For Use With/Related Products	Thread Size	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Color	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)
Bopla Enclosures 10000410	IP65	Plug	Polyethylene	BF 13/MBF 20, BoplaFlex Gland
Bopla Enclosures 10000200			Polyamide (PA), Nylon		PG9	IP68 - Dust Tight, Waterproof	0.157 in	4 mm	100 °C	-20 C	Gray	8 mm	0.315 in	8 mm	0.315 in	Cable Gland
Bopla Enclosures 10000300			Polyamide (PA), Nylon		PG11	IP68 - Dust Tight, Waterproof	0.197 in	5 mm	100 °C	-20 C	Gray	8 mm	0.315 in	10 mm	0.394 "	Cable Gland
Bopla Enclosures 10000100			Polyamide (PA), Nylon		PG7	IP68 - Dust Tight, Waterproof			100 °C	-20 C	Gray	8 mm	0.315 in	6.5 mm	0.256 "	Cable Gland	3 mm	0.118 in
Bopla Enclosures 10000700			Polyamide (PA), Nylon		PG29	IP68 - Dust Tight, Waterproof			100 °C	-20 C	Gray	11 mm	0.433 in		0.984 in	Cable Gland	18.01 mm	0.709 in	25 mm
Bopla Enclosures 10000310	IP65	Plug	Polyethylene	BF 11, BoplaFlex Gland
Bopla Enclosures 10000710	IP65	Plug	Polyethylene	BF 29, BoplaFlex Gland
Bopla Enclosures 10000600			Polyamide (PA), Nylon		PG21	IP68 - Dust Tight, Waterproof			100 °C	-20 C	Gray	11 mm	0.433 in	18.01 mm	0.709 in	Cable Gland		0.512 in		13 mm
Bopla Enclosures 10000210	IP65	Plug	Polyethylene	BF 9/MBF 16, BoplaFlex Gland
Bopla Enclosures 10000110	IP65	Plug	Polyethylene	BF 7/MBF 12, BoplaFlex Gland
