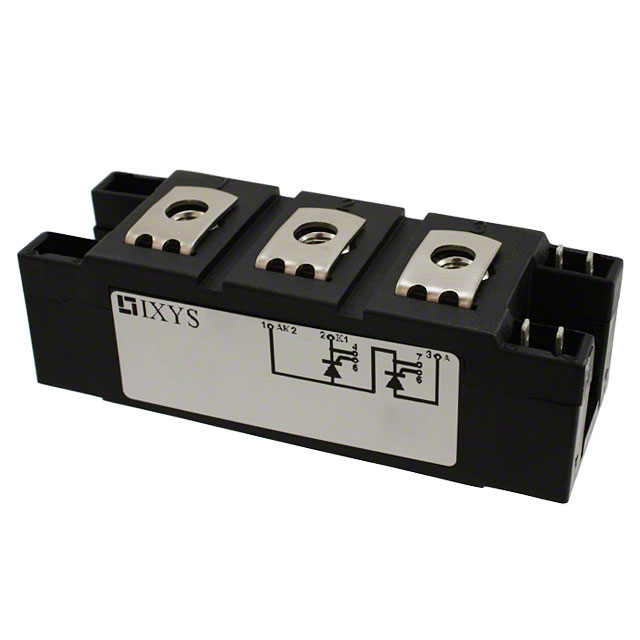

MCD162-16IO1

Active

IXYS

MOD THYRISTOR/DIODE 1600V Y4-M6

Search across all available documentation for this part.

Active

IXYS

MOD THYRISTOR/DIODE 1600V Y4-M6

Technical Specifications

Parameters and characteristics for this part

Specification	MCD162-16IO1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	6400 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	6000 A
Current - On State (It (RMS)) (Max) [Max]	300 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Y4-M6
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

Part	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Number of SCRs, Diodes	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Gate Trigger (Vgt) (Max)	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Structure	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]
IXYS MCD162-16IO1	300 A	1.6 kV	1	Y4-M6	-40 °C	125 ¯C	2.5 V	6000 A	6400 A	Series Connection - SCR/Diode	Chassis Mount	150 mA	200 mA
IXYS MCD162-08IO1	300 A	800 V	1	Y4-M6	-40 °C	125 ¯C	2.5 V	6000 A	6400 A	Series Connection - SCR/Diode	Chassis Mount	150 mA	200 mA
