Description

General part information

GRB293C Series

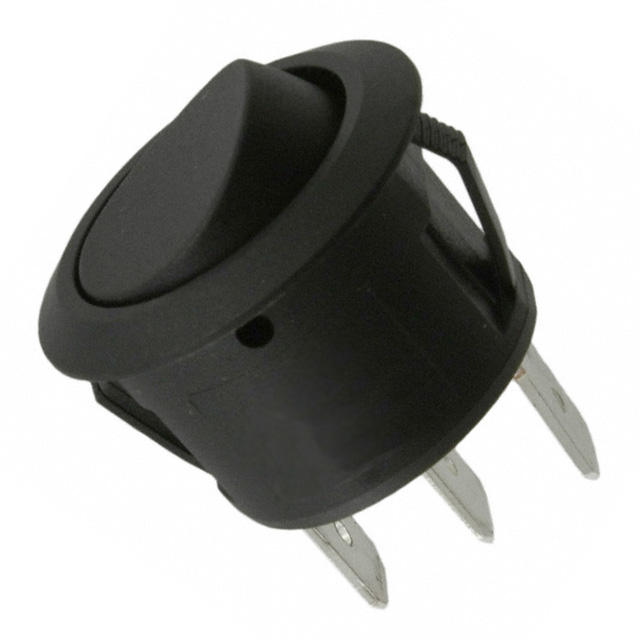

Rocker Switch SPDT 20A (AC) 125 V Panel Mount, Snap-In

Technical Specifications

Parameters and characteristics for this part

SpecificationGRB293C01BB
Actuator MarkingNo Marking
Actuator TypeRound
CircuitSPDT
Color - Actuator/CapBlack
Current Rating20 A
Mechanical Life (Cycles)100000 Cycles
Mounting TypePanel Mount, Snap-In
Operating Temperature (Max)85 °C
Operating Temperature (Min)-25 °C
Panel Cutout Diameter22 mm
Panel Cutout ShapeCircular
Quick Connect Size (0.250")0.25 in
Switch FunctionOn-On
Termination StyleQuick Connect
Voltage Rating - AC125 V
