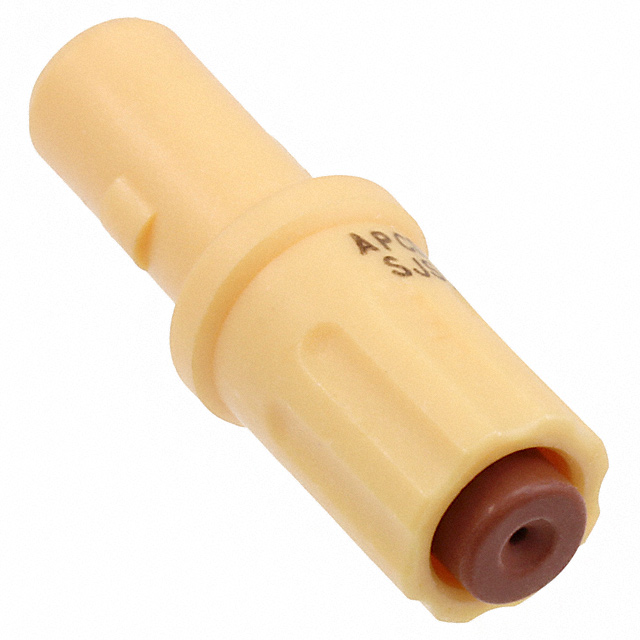

SJS720110

Active

AMPHENOL PCD

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, 1 CONTACTS

Search across all available documentation for this part.

Active

AMPHENOL PCD

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, 1 CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	SJS720110

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Detent Lock
Housing Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-55 °C
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	6
Shielding	Unshielded
Type	For Female Sockets

CIRCULAR CONNECTOR, MIL-T-81714 EQUIVALENT, SJS QUICKCONNECT SERIES, 1 CONTACTS

Part	Number of Positions	Note	Type	Housing Color	Fastening Type	Shell Size - Insert	Contact Size	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Shielding	Connector Type	Contact Shape	Contact Type	Mounting Type	Ingress Protection
AMPHENOL PCD SJS720110	1	Contacts Not Included	For Female Sockets	Yellow	Detent Lock	6	20	UL94 V-0	203 °F	-55 °C	Polyamide (PA66), Nylon 6/6	Unshielded	Plug Housing	Circular	Crimp	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Position Circular Connector Plug Housing Free Hanging (In-Line)
