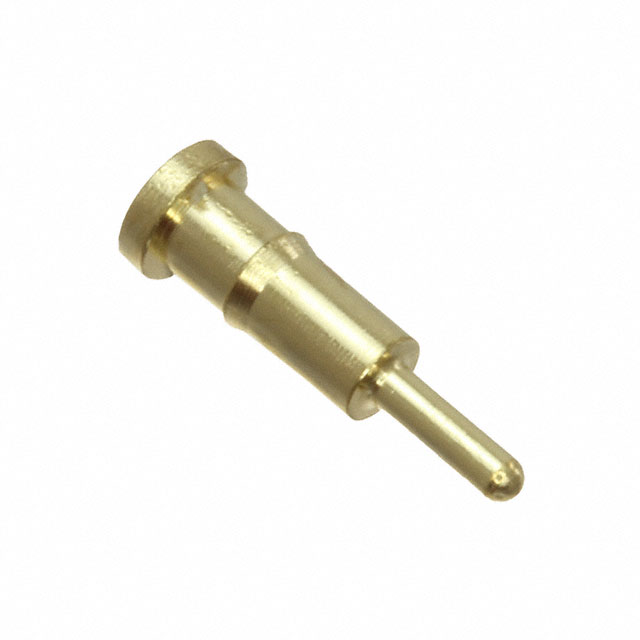

0336-0-15-15-34-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .032-.046 PRESSFIT
Deep-Dive with AI
Search across all available documentation for this part.
0336-0-15-15-34-27-04-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .032-.046 PRESSFIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0336-0-15-15-34-27-04-0 |
|---|---|
| Accepts Pin Diameter | 0.81 mm, 1.17 mm |
| Accepts Pin Diameter [Max] | 0.046 in |
| Accepts Pin Diameter [Min] | 0.032 " |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.119 in |
| Flange Diameter [diameter] | 3.02 mm |
| Length - Overall [x] | 0.385 in |
| Length - Overall [x] | 9.78 mm |
| Mounting Hole Diameter [diameter] | 2.26 mm |
| Mounting Hole Diameter [diameter] | 0.089 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.63 mm |
| Pin Hole Diameter [diameter] | 0.064 in |
| Socket Depth | 5.21 mm |
| Socket Depth | 0.205 in |
| Tail Diameter | 1.02 mm |
| Tail Diameter [diameter] | 0.04 " |
| Tail Type | Standard Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.66 | |
| 10 | $ 1.44 | |||
| 25 | $ 1.38 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.29 | |||
| 250 | $ 1.17 | |||
| 500 | $ 1.07 | |||
| 1000 | $ 0.92 | |||
| 3000 | $ 0.86 | |||
Description
General part information
0336-0 Series
Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) Standard Tail Press-Fit
Documents
Technical documentation and resources
No documents available
