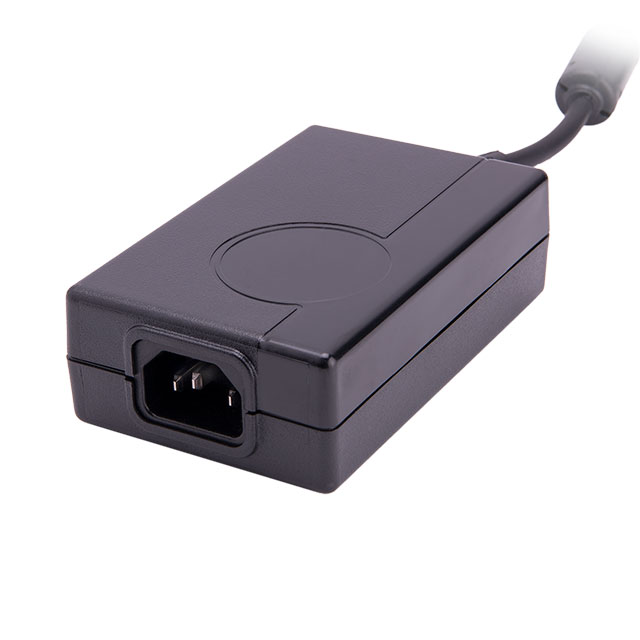

TE60A1803F01

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 18V 61W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC DESKTOP ADAPTER 18V 61W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TE60A1803F01	TE60A1803 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, CSA, UL, CE	CB, CSA, UL, CE
Cord Length	45.3 in	45.3 in
Cord Length	1.15 m	1.15 m
Current - Output (Max) [Max]	3.4 A	3.4 A
Efficiency	Level VI	Level VI
Form	Desktop (Class I)	Desktop (Class II), Desktop (Class I)
Input Connector	IEC 320-C14	IEC 320-C8, IEC 320-C14
Input Type	Cord	Cord
No Load Power Consumption	210 mW	210 mW
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-20 C	-20 C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	61 W	61 W
Region Utilized	International	International
Size / Dimension [x]	108 mm	108 mm
Size / Dimension [x]	4.25 in	4.25 in
Size / Dimension [y]	67.9 mm	67.9 mm
Size / Dimension [y]	2.67 in	2.67 in
Size / Dimension [z]	1.29 in	1.29 in
Size / Dimension [z]	32.7 mm	32.7 mm
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	18 V	18 V
Weight	0.882 lb	0.882 lb
Weight	400.07 g	400.07 g

AC/DC DESKTOP ADAPTER 18V 61W

Part	Efficiency	Current - Output (Max) [Max]	Approval Agency	Input Connector	Cord Length	Cord Length	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Applications	Output Connector [diameter]	Output Connector [x]	Output Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	No Load Power Consumption	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Power (Watts)	Form	Weight	Weight
SL POWER / Advanced Energy TE60A1803N01	Level VI	3.4 A	CB, CE, CSA, UL	IEC 320-C8	45.3 in	1.15 m	Cord	90 VAC	264 VAC	18 V	ITE (Commercial)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	1.29 in	67.9 mm	32.7 mm	108 mm	2.67 in	4.25 in	210 mW	International	50 °C	-20 C	Positive Center	61 W	Desktop (Class II)	0.882 lb	400.07 g
SL POWER / Advanced Energy TE60A1803F01	Level VI	3.4 A	CB, CE, CSA, UL	IEC 320-C14	45.3 in	1.15 m	Cord	90 VAC	264 VAC	18 V	ITE (Commercial)	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	1.29 in	67.9 mm	32.7 mm	108 mm	2.67 in	4.25 in	210 mW	International	50 °C	-20 C	Positive Center	61 W	Desktop (Class I)	0.882 lb	400.07 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 29.38
