391-022-520-204
ActiveEDAC Inc.

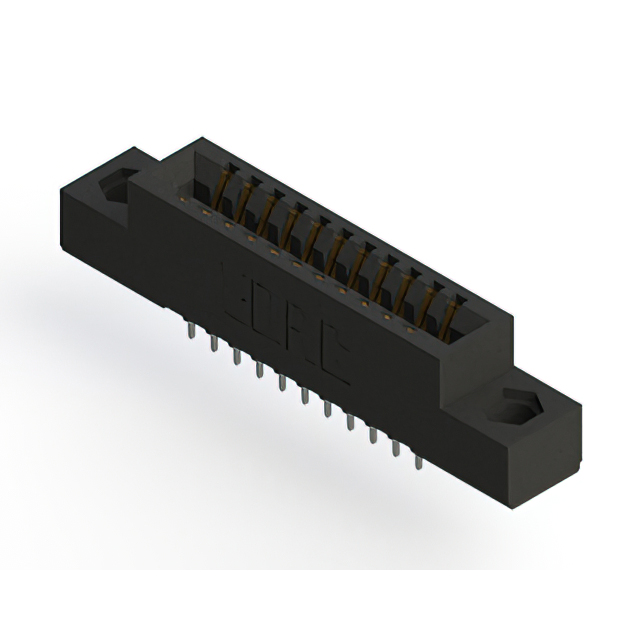

CARD EDGE CONNECTOR, 22 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
391-022-520-204
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 22 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 391-022-520-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 22 positions |
| Number of Positions/Bay/Row [custom] | 11 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
391-022 Series
| Part | Contact Material | Mounting Type | Number of Positions/Bay/Row [custom] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination Rows | Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Gender | Number of Positions | Termination | Read Out | Contact Type | Features | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Through Hole | 22 | Gold | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Single | Semi Bellows | ||||
EDAC Inc. | Copper Alloy | Through Hole | 11 | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Dual | Semi Bellows | Card Extender | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in |
EDAC Inc. | Copper Alloy | Through Hole | 22 | Gold | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Single | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Copper Alloy | Through Hole | 11 | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Dual | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Copper Alloy | Board Edge Straddle Mount | 11 | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Dual | Semi Bellows | Card Extender | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " |
EDAC Inc. | Copper Alloy | Through Hole | 11 | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Dual | Semi Bellows | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | |
EDAC Inc. | Copper Alloy | Through Hole | 11 | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Dual | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Copper Alloy | Through Hole | 11 | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Dual | Semi Bellows | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |
EDAC Inc. | Copper Alloy | Through Hole | 22 | Gold | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 1 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Single | Semi Bellows | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Copper Alloy | Through Hole | 11 | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | Black | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Female | 22 positions | Solder | Dual | Semi Bellows |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.39 | |
Description
General part information
391-022 Series
22 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
