IXYH10N170C

Active

IXYS

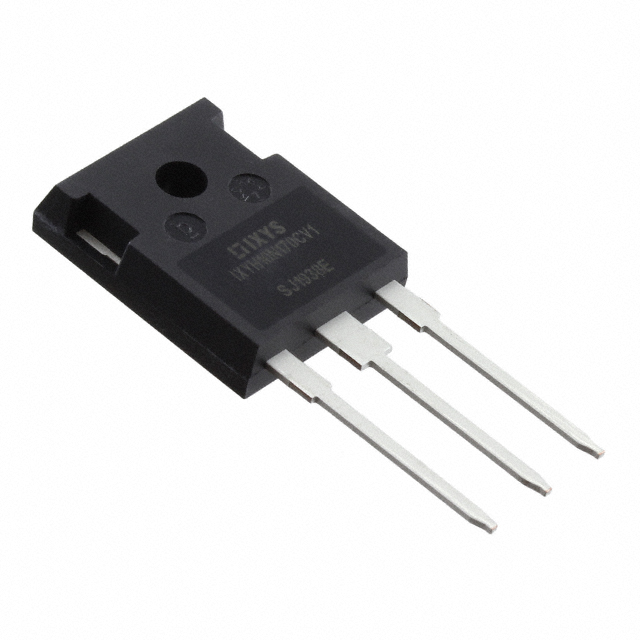

IGBT 1700V 36A TO247

Search across all available documentation for this part.

Active

IXYS

IGBT 1700V 36A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	IXYH10N170C

Current - Collector (Ic) (Max) [Max]	36 A
Current - Collector Pulsed (Icm)	84 A
Gate Charge	46 nC
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	280 W
Reverse Recovery Time (trr)	17 ns
Supplier Device Package	TO-247 (IXYH)
Switching Energy	700 µJ, 1.4 mJ
Td (on/off) @ 25°C	14 ns, 130 ns
Test Condition	15 V, 850 V, 10 Ohm, 10 A
Vce(on) (Max) @ Vge, Ic	3.8 V
Voltage - Collector Emitter Breakdown (Max)	1700 V

Part	Vce(on) (Max) @ Vge, Ic	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Collector (Ic) (Max) [Max]	Reverse Recovery Time (trr)	Switching Energy	Test Condition	Gate Charge	Td (on/off) @ 25°C	Current - Collector Pulsed (Icm)	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Supplier Device Package	Power - Max [Max]
IXYS IXYH10N170C	3.8 V	Through Hole	-55 °C	175 ░C	36 A	17 ns	1.4 mJ 700 µJ	10 Ohm 10 A 15 V 850 V	46 nC	14 ns 130 ns	84 A	1700 V	TO-247-3	TO-247 (IXYH)	280 W
IXYS IXYH10N170CV1	3.8 V	Through Hole	-55 °C	175 ░C	36 A	160 ns	1.4 mJ 700 µJ	10 Ohm 10 A 15 V 850 V	46 nC	14 ns 130 ns	84 A	1700 V	TO-247-3	TO-247 (IXYH)	280 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 1700 V 36 A 280 W Through Hole TO-247 (IXYH)
