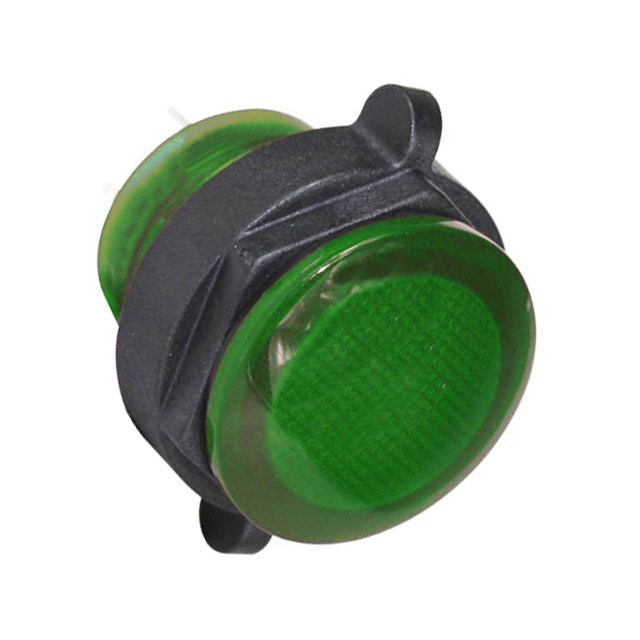

Specification	CNX722C500120T

Current	8 mA
Ingress Protection	IP67
Lamp Color	Green
Lens Color	Green
Lens Diameter	25.6 mm
Lens Style	Round, Domed Top
Lens Transparency	Clear
Millicandela Rating	924 mcd
Panel Cutout Dimension	0.91 "
Panel Cutout Shape	Round
Quick Connect Size (0.187")	0.187 in
Ratings	AC
Termination Style	Quick Connect
Type	LED
Voltage	120 V

CNX722 Series

Part	Millicandela Rating	Panel Cutout Dimension	Voltage (Max)	Voltage (Min)	Type	Ingress Protection	Ratings	Lens Style	Panel Cutout Shape	Lamp Color	Current	Termination Style	Lens Diameter	Lens Transparency	Lens Color	Termination Length	Voltage	Quick Connect Size (0.187")	Mounting Type	Color	Lens Size	Configuration	Millicandela Rating (Max)	Millicandela Rating (Min)
Visual Communications Company - VCC CNX722C600FVT	495 mcd	0.91 "	28 V	5 V	LED	IP67	DC	Domed Top Round	Round	Blue	20 mA	Quick Connect
Visual Communications Company - VCC CNX722C500120W	924 mcd	0.91 "			LED	IP67	AC	Domed Top Round	Round	Green	8 mA	Wire Leads	25.6 mm	Clear	Green	6 in	120 V
Visual Communications Company - VCC CNX722C500120T	924 mcd	0.91 "			LED	IP67	AC	Domed Top Round	Round	Green	8 mA	Quick Connect	25.6 mm	Clear	Green		120 V	0.187 in
Visual Communications Company - VCC CNX722C400FVT	140 mcd	0.88 "	28 V	5 V	LED	IP67 NEMA 6P	DC	Domed Top Round	Round	Yellow	20 mA	Solder Lug	25.6 mm
Visual Communications Company - VCC CNX722C401120W	245 mcd	0.91 "			LED	IP67	AC	Domed Top Round	Round	Yellow	8 mA	Wire Leads	25.6 mm	Clear	Yellow	6 in	120 V
Visual Communications Company - VCC CNX722C600FVB	495 mcd	0.91 "	28 V	5 V	LED	IP67	DC	Domed Top Round	Round	Blue	20 mA	Screw Terminal
Visual Communications Company - VCC CNX722C401FVW					Rigid			Domed Top Round											Board Panel Mount Snap In	Yellow	25.65 mm	Single
Visual Communications Company - VCC CNX722C600FVW	495 mcd	0.91 "	28 V	5 V	LED	IP67	DC	Domed Top Round	Round	Blue	20 mA	Wire Leads				6 in
Visual Communications Company - VCC CNX722C600120T	67 mcd	0.91 "			LED	IP67	AC	Domed Top Round	Round	Blue	8 mA	Quick Connect	25.6 mm	Clear	Blue		120 V	0.187 in
Visual Communications Company - VCC CNX722C900FVW		0.88 "	28 V	5 V	LED	IP67 NEMA 6P	DC	Domed Top Round	Round	White	20 mA	Wire Leads	25.6 mm			6 in							1700 mcd	1300 mcd
