BN-45

Active

Texmate

5VDC POWER 2V/20V/200V VOLT METE

Search across all available documentation for this part.

Active

Texmate

5VDC POWER 2V/20V/200V VOLT METE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 365.00

General part information

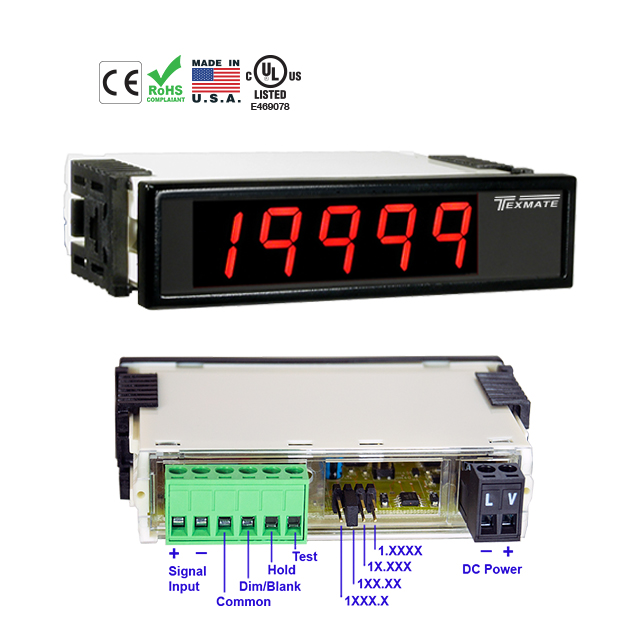

Voltmeter LED - Red Characters Display Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BN-45	- Series

Display Characters - Height	-	0.315 in
Display Characters - Height	-	8 mm
Display Characters - Height	-	7.62 mm
Display Characters - Height	-	0.3 in
Display Characters - Height [z]	14.2 mm	12.7 - 14.2 mm
Display Characters - Height [z]	0.56 in	0.5 - 0.56 in
Display Type	LED - Red Characters	LED - Red Characters, LCD - Black Characters
Measuring Range	-	2 - 200 VDC
Measuring Range [Max]	200 V	200 V
Measuring Range [Min]	-200 V	-200 V
Measuring Type	Voltage	Voltage, Current
Number of Characters Per Row	4.5	3.5 - 5
Operating Temperature	-	-10 °C
Operating Temperature	-	50 °C
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Panel Cutout Dimensions [x]	92 mm	48 - 96 mm
Panel Cutout Dimensions [y]	22.2 mm	22.2 - 48 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Voltmeter	Voltmeter, Ammeter
Voltage - Supply	5 V	5 V
Voltage - Supply	-	24 - 36 V
Voltage - Supply	-	5 - 12 V
Voltage - Supply	-	Loop Power

9-36VDC POWER 2V/20V/200V 4.5 VO

Part	Measuring Range [Min]	Measuring Range [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters Per Row	Operating Temperature [Max]	Operating Temperature [Min]	Measuring Type	Display Characters - Height [z]	Display Characters - Height [z]	Display Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Type	Display Characters - Height [y]	Display Characters - Height [y]	Measuring Range	Voltage - Supply	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Voltage - Supply	Display Characters - Height	Display Characters - Height
Texmate BN-45I	-200 V	200 V	36 V	9 V	4.5	60 °C	0 °C	Voltage	14.2 mm	0.56 in	LED - Red Characters	22.2 mm	92 mm	Screw Terminal	Voltmeter
Texmate MU-35			24 VAC, 36 V	5 V, 12 VAC	3.5			Voltage			LED - Red Characters	24 mm	48 mm	Screw Terminal	Voltmeter	0.315 in	8 mm	2 VDC, 20 VDC, 200 VDC
Texmate SD-50X					5			Current	12.7 mm	0.5 in	LCD - Black Characters	48 mm	96 mm	Screw Terminal	Ammeter				Loop Power	-10 °C	50 °C
Texmate BN-45	-200 V	200 V			4.5	60 °C	0 °C	Voltage	14.2 mm	0.56 in	LED - Red Characters	22.2 mm	92 mm	Screw Terminal	Voltmeter							5 V
Texmate MU-35CL			24 VAC, 36 V	5 V, 12 VAC	3.5			Current			LED - Red Characters	24 mm	48 mm	Screw Terminal	Ammeter								7.62 mm	0.3 in
