EPS200-1/8-48"-BLACK-250 PCS

Active

HEATSHRINK TUBING 1/8-48" 1=1PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEPS-200 Tubing Datasheet +1

EPS200-1/8-48"-BLACK-250 PCS

Active

HEATSHRINK TUBING 1/8-48" 1=1PC

Deep-Dive with AI

DocumentsEPS-200 Tubing Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	250	$ 3.65

Description

General part information

EPS-200 Series

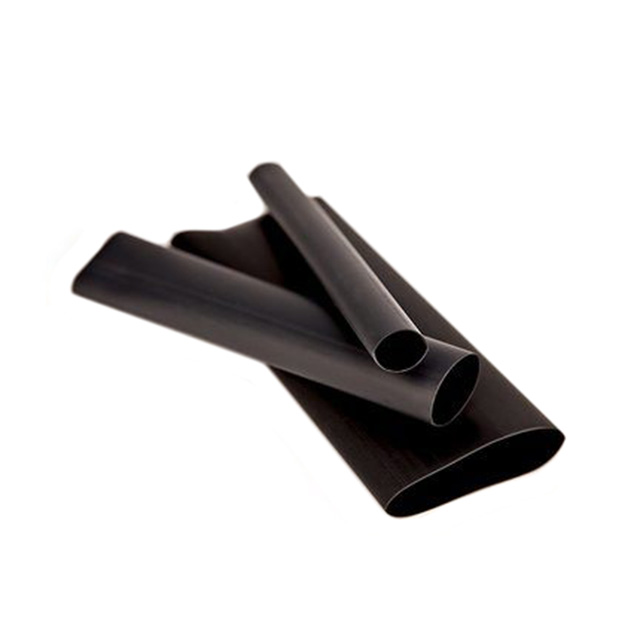

Heat Shrink Tubing, Flexible 0.125" (3.18mm) 2 to 1 Black 4.00' (1.22m)

Documents

Technical documentation and resources

EPS-200 Tubing

Datasheet

Heat Shrink Tubing and Devices Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPS200-1/8-48"-BLACK-250 PCS	EPS-200 Series

Color	Black	Black
Features	Adhesive Lined, Flame Retardant	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered	-	2.36 - 3.18 mm
Inner Diameter - Recovered	-	0.093 in
Inner Diameter - Recovered [diameter]	0.063 in	0.062 - 1 in
Inner Diameter - Recovered [diameter]	1.6 mm	1.57 - 25.4 mm
Inner Diameter - Supplied [diameter]	3.18 mm	3.18 - 50.8 mm
Inner Diameter - Supplied [diameter]	0.125 "	0.125 - 2 "
Length	-	19.05 - 152.4 mm
Length	-	0.75 - 6 "
Length	-	0.062 - 0.25 '
Length	-	4 "
Length	-	0.5 '
Length [x]	1.22 m	1.22 - 609.6 m
Length [x]	4 ft	0.333 - 4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.027 "	0.027 - 0.06 "
Recovered Wall Thickness	0.69 mm	0.69 - 1.52 mm
Recovered Wall Thickness	-	0.03 "
Recovered Wall Thickness	-	0.046 in
Recovered Wall Thickness	-	1.17 mm
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	121 °C	121 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

EPS-200 Series

HEATSHRINK 1/8"X4'(8')EPS200 BLK

Part	Material	Shrinkage Ratio	Shelf Life	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life Start	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Length	Length	Length	Inner Diameter - Recovered	Length [x]	Recovered Wall Thickness	Length	Inner Diameter - Recovered	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]
3M EPS200 1/8" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	3.18 mm	0.125 "	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	1.57 mm	0.062 in	1.22 m	4 ft
3M EPS-200 1/4"BL 48"BX	Polyolefin (PO)	2 to 1	120 Months	6.35 mm	0.25 in		0.76 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant		0.125 in	1.22 m, 101.6 mm	0.333 ft, 4 ft	38.1 mm, 50.8 mm	1.5 ", 2 "	0.125 ', 0.167 '	3.18 mm	4 "	0.03 "
3M EPS-200 1 1/2" BL 48"BX	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	19.05 mm	0.75 "	101.6 mm	0.333 ft	19.05 mm, 25.4 mm, 76.2 mm, 152.4 mm	0.75 ", 1 in, 3 ", 6 "	0.062 ', 0.083 ft, 0.25 ft		4 "		0.5 '
3M EPS200 3/16" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	4.75 mm	0.187 in	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant			1.22 m	4 ft				2.36 mm				0.093 in
3M EPS200-1-48"-BLACK-24 PCS	Polyolefin (PO)	2 to 1	120 Months	25.4 mm	1 in			Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant	12.7 mm	0.5 in	1.22 m	4 ft									0.046 in	1.17 mm
3M EPS-200 3/4" BL48"BX	Polyolefin (PO)	2 to 1	120 Months			0.037 in	0.94 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	9.53 mm	0.375 in	1.22 m	4 ft	19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 76.2 mm	0.75 ", 1 in, 1.5 ", 2 ", 3 "	0.062 ', 0.083 ft, 0.125 ', 0.167 ', 0.25 ft
3M EPS200-3/16-48"-BLACK-250 PCS	Polyolefin (PO)	2 to 1	120 Months	4.75 mm	0.187 in	0.027 "	0.69 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant			1.22 m	4 ft				2.36 mm				0.093 in
3M EPS200 1" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	25.4 mm	1 in			Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	12.7 mm	0.5 in											0.046 in	1.17 mm
3M EPS-200-1 1/2-BLACK	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant	19.05 mm	0.75 "	1.22 m	4 ft
3M EPS200 11/2" BL48"BX	Polyolefin (PO)	2 to 1	120 Months	38.1 mm	1.5 in	0.049 "	1.24 mm	Tubing, Flexible	-55 °C	110 °C	121 °C	Black	27 °C, 80 °F	10 °C	Date of Manufacture	Adhesive Lined, Flame Retardant, Fluid Resistant	19.05 mm	0.75 "	1.22 m	4 ft
