1551 WR005

Active

ALPHA WIRE

HOOK-UP STRND 22AWG W/R 100'

Deep-Dive with AI

DocumentsAlpha Wire Print Notification Hook-Up Wire Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 59.11
		3	$ 54.67
		5	$ 51.89
		10	$ 48.84
		25	$ 45.51
		50	$ 43.01
		100	$ 40.79

Description

General part information

1551 Series

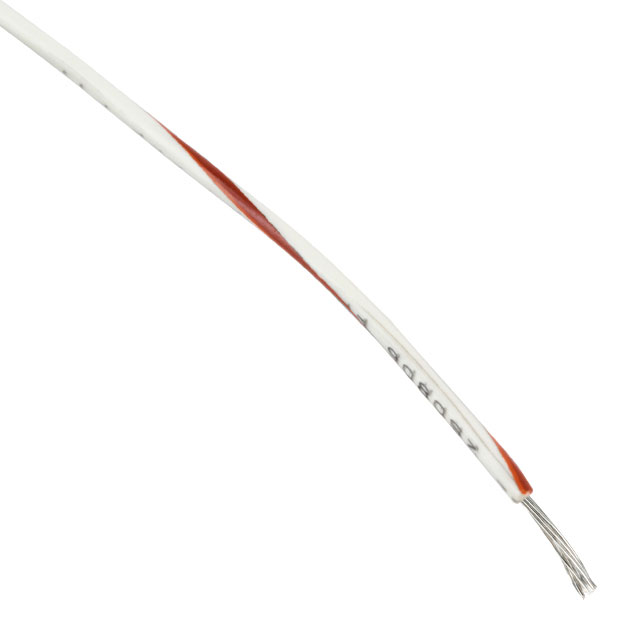

22 AWG Hook-Up Wire 7/30 White, Red Stripe 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Alpha Wire Print Notification

Hook-Up Wire Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1551 WR005	1551 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	0.062 in	0.062 in
Jacket (Insulation) Diameter [diameter]	1.57 mm	1.57 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	White, Red Stripe	Slate, Orange, White, Black Stripe, White, Red Stripe, White, Orange Stripe, White, Yellow Stripe, White, Blue Stripe, Black, Red, Yellow, White, Brown Stripe, Blue, Violet
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	22 AWG	22 AWG

1551 Series

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, GRAY, 22 AWG, 0.357 MM², 100 FT

Part	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Qualification	Jacket Color	Voltage	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
ALPHA WIRE 1551 SL005	7	30 AWG	30.5 m	100 ft	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	Slate	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm
ALPHA WIRE 1551 OR001	7	30 AWG			-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	Orange	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm	1000 ft	304.8 m
ALPHA WIRE 1551 WB001	7	30 AWG			-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	White, Black Stripe	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm	1000 ft	304.8 m
ALPHA WIRE 1551 WR005	7	30 AWG	30.5 m	100 ft	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	White, Red Stripe	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm
ALPHA WIRE 1551 WB005	7	30 AWG	30.5 m	100 ft	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	White, Black Stripe	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm
ALPHA WIRE 1551 WO001	7	30 AWG			-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	White, Orange Stripe	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm	1000 ft	304.8 m
ALPHA WIRE 1551 WY001	7	30 AWG			-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	White, Yellow Stripe	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm	1000 ft	304.8 m
ALPHA WIRE 1551 OR005	7	30 AWG	30.5 m	100 ft	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	Orange	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm
ALPHA WIRE 1551 WH005	7	30 AWG	30.5 m	100 ft	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW		1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm
ALPHA WIRE 1551 WU005	7	30 AWG	30.5 m	100 ft	-40 °C	80 C	Poly-Vinyl Chloride (PVC)	0.016 in	0.41 mm	Hook-Up	MIL-W-76B Type MW	White, Blue Stripe	1000 V	22 AWG	Copper, Tinned	0.062 in	1.57 mm
